ALUMAX wet-zone cabinetryALUMAX 湿区柜体Kabinet zon basah ALUMAX
Cabinets built for water — aluminium, ACP and honeycomb为水而生的柜子——铝合金、ACP 与蜂窝板Kabinet dibina untuk air — aluminium, ACP dan honeycomb
Wet kitchens, bathroom vanities and laundries live with water every day, so their cabinets are built differently: moisture-resistant aluminium, ACP and honeycomb carcasses, made to your measurements and installed by ALUMAX. Priced per configuration — never a one-size guess.湿厨房、浴室柜与洗衣区天天与水相处，所以它们的柜体用不同的方式建造：耐潮的铝合金、ACP 与蜂窝板柜身，按你的尺寸定制，由 ALUMAX 安装。按配置报价——绝不一刀切。Dapur basah, vaniti bilik mandi dan ruang dobi hidup dengan air setiap hari, jadi kabinetnya dibina berbeza: badan aluminium, ACP dan honeycomb yang tahan lembapan, dibuat mengikut ukuran anda dan dipasang oleh ALUMAX. Diharga mengikut konfigurasi — bukan tekaan satu saiz.
Ready to price即可报价Sedia untuk diharga
Wet-zone cabinets — moisture-resistant ACP & aluminium
Board cabinetry stops where direct water begins. These lines are built for it — here's what's ready to price now.板式柜到直接遇水处为止。这些产品线正是为水而造——以下即可报价。Kabinet papan berhenti di mana air langsung bermula. Barisan ini dibina untuknya — inilah yang sedia diharga sekarang.
Bathroom vanity cabinets
Moisture-resistant vanity units — aluminium or ACP carcass, glass or laminate fronts, sized around your basin and plumbing.
Laundry & utility cabinets
Damp-tolerant storage for the laundry and utility area — AquaGlass (ACP) carcass, built around your machines, sink and drying zone.
Specification standards
Why we specify it this way
These come from our approved decision register, not from a preference. Each one names the rule it follows and the canon it cites.
Galley kitchen working clearances
Confirm确认SahkanHold a ~1100 mm clear walkway between opposing base runs, each run ~600 mm deep. Worktop height ~900 mm with roughly a 600 mm gap up to the upper cabinets. Around an island, keep ~1000-1200 mm circulation.
Why this appliesyour specification includes wet kitchen; laying out a galley or parallel-run kitchen
When it does nota documented appliance/door-swing constraint requires a local exception confirmed by ELS
RULE-KIT-ERG-013Version 1.0Recommended practiceSource (4)
- ELS Book 2 SP-05 — Wet Kitchen
- ELS Book 2 SP-04 — Dry Kitchen; room layout and clearance is Book 2's domain
- implementation:8fa8628 (ClearanceGuide.tsx — authored top-view galley plan)
- implementation:design-alumax-site/src/components/ClearanceGuide.tsx
Sink-base / wet-zone carcass material selection
Confirm确认SahkanMatch the carcass to the moisture zone published in the material-zones canon: dry uppers / runs use board (P6 or plywood); prep + splashback use a sealed board or ACP; the sink base and other repeated direct-water positions use a non-absorbent carcass (ACP / honeycomb aluminium / full aluminium). Values are governed by the feed, not restated here.
Why this appliesyour specification includes wet kitchen, laundry and bathroom vanity; specifying any cabinet run that meets water
When it does notProtected plywood where exposure is controlled and detailing keeps water off the core.
RULE-MAT-WET-004Version 1.0Recommended practiceSource (7)
- ELS Book 3 CAR-03 — Moisture Protection Logic
- ELS Book 3 CAR-01 — Carcass Material Selection
- ELS Book 1 REF-M — material permission by zone; the owner every book cites and none restates
- implementation:/api/material-zones
- implementation:check-material-zones-against-feed.mjs
- implementation:bbaee49 (WetZoneOverlay — 3 moisture zones -> carcass)
- implementation:design-alumax-site/src/components/MaterialLadder.tsx
Why AquaGlass for the wet zone
See what the upgrade buys

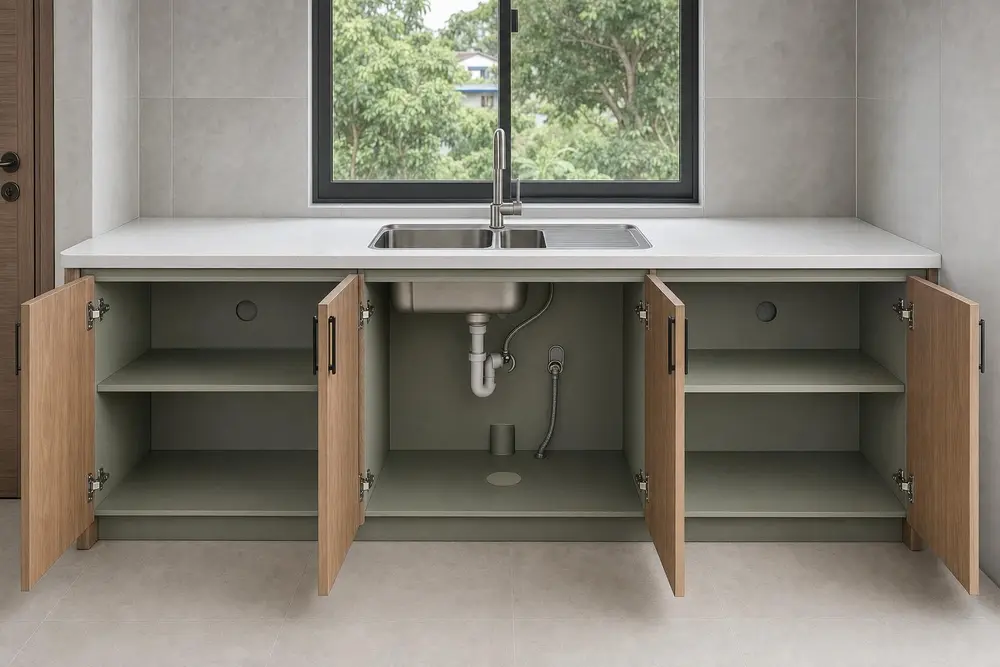

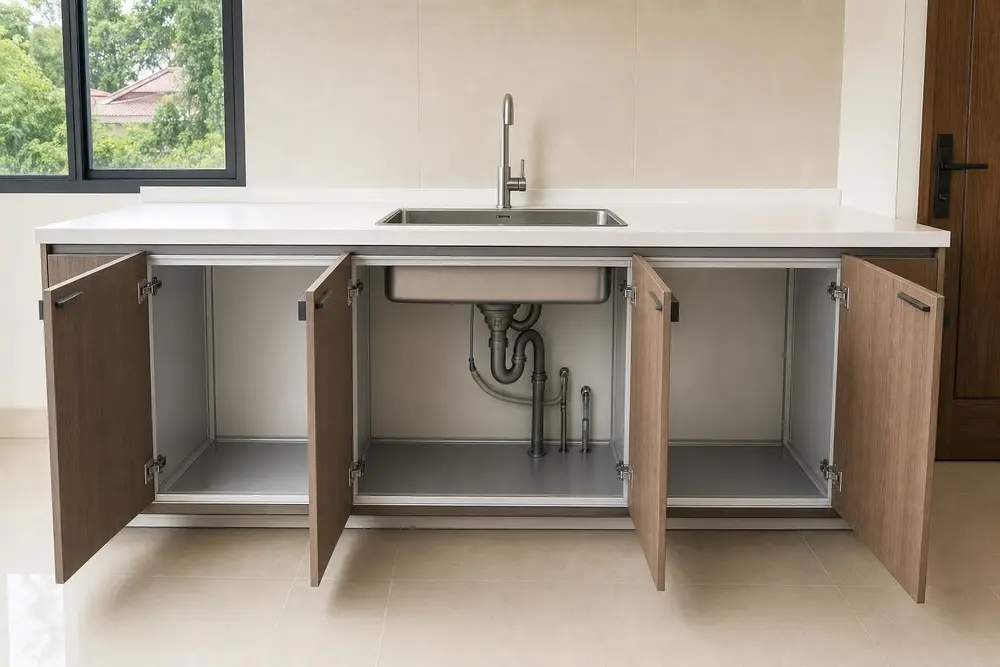

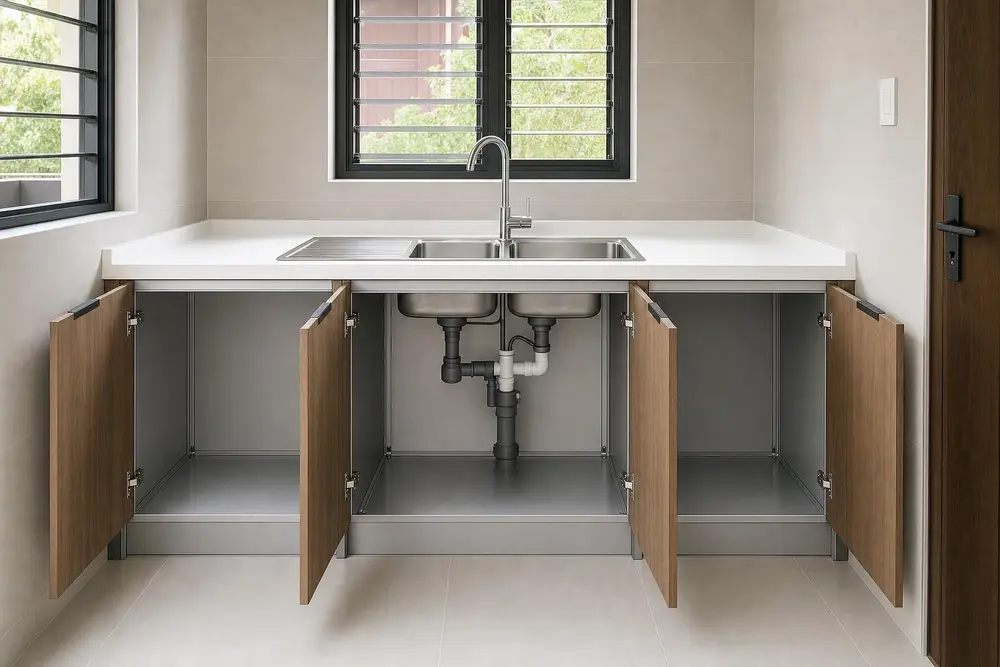

The same run in board, ACP and honeycomb
One kitchen, one camera, three carcasses. The difference is not what you can see on day one — it is what standing water does to each of them over a few years. Which one suits each zone of your room is confirmed at your free site measurement.

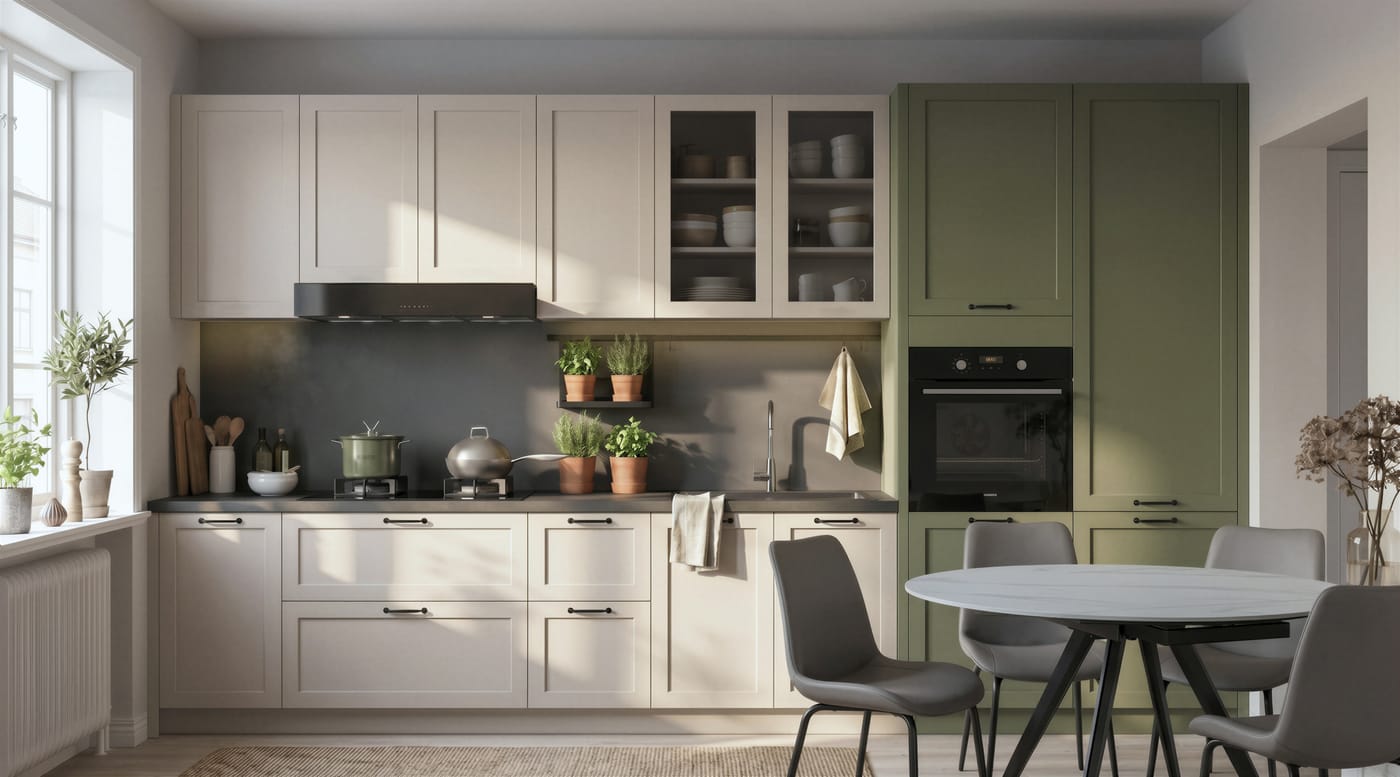

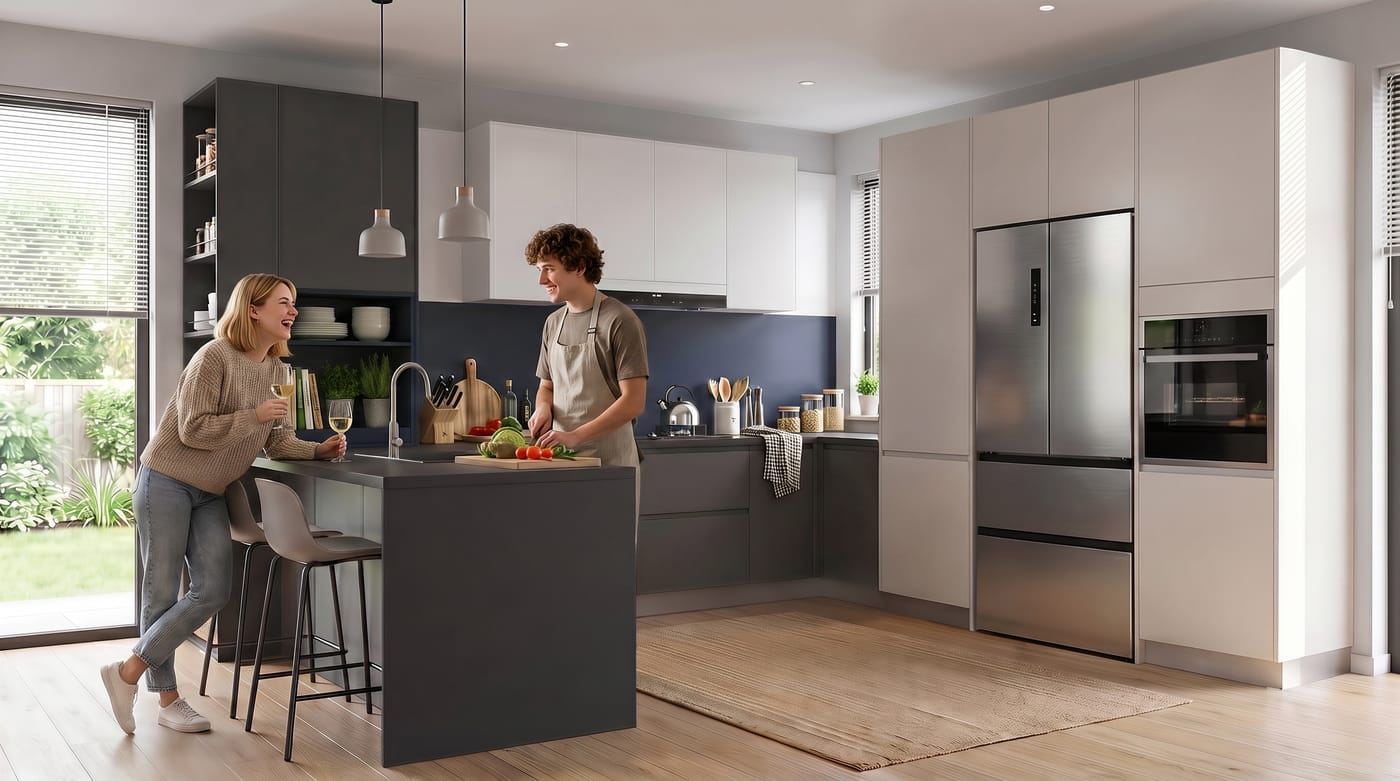

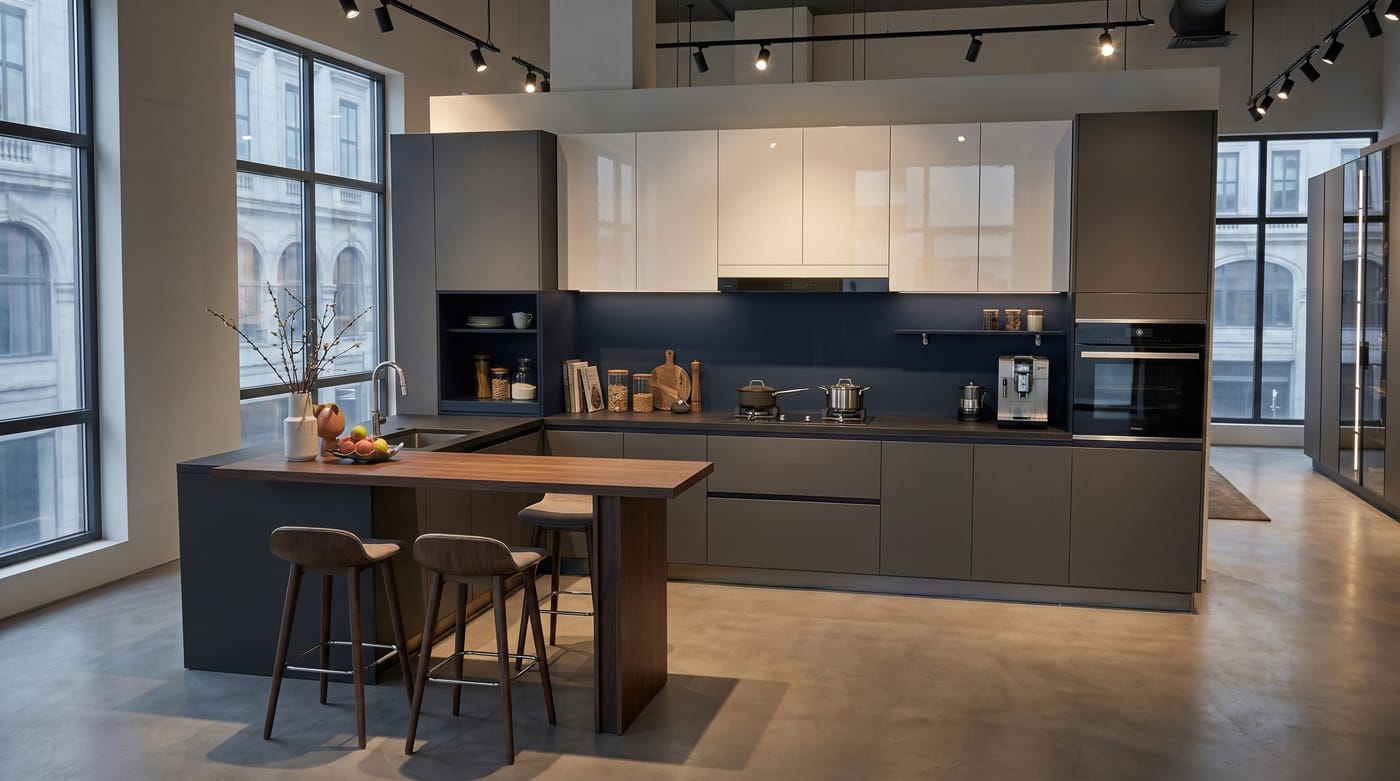

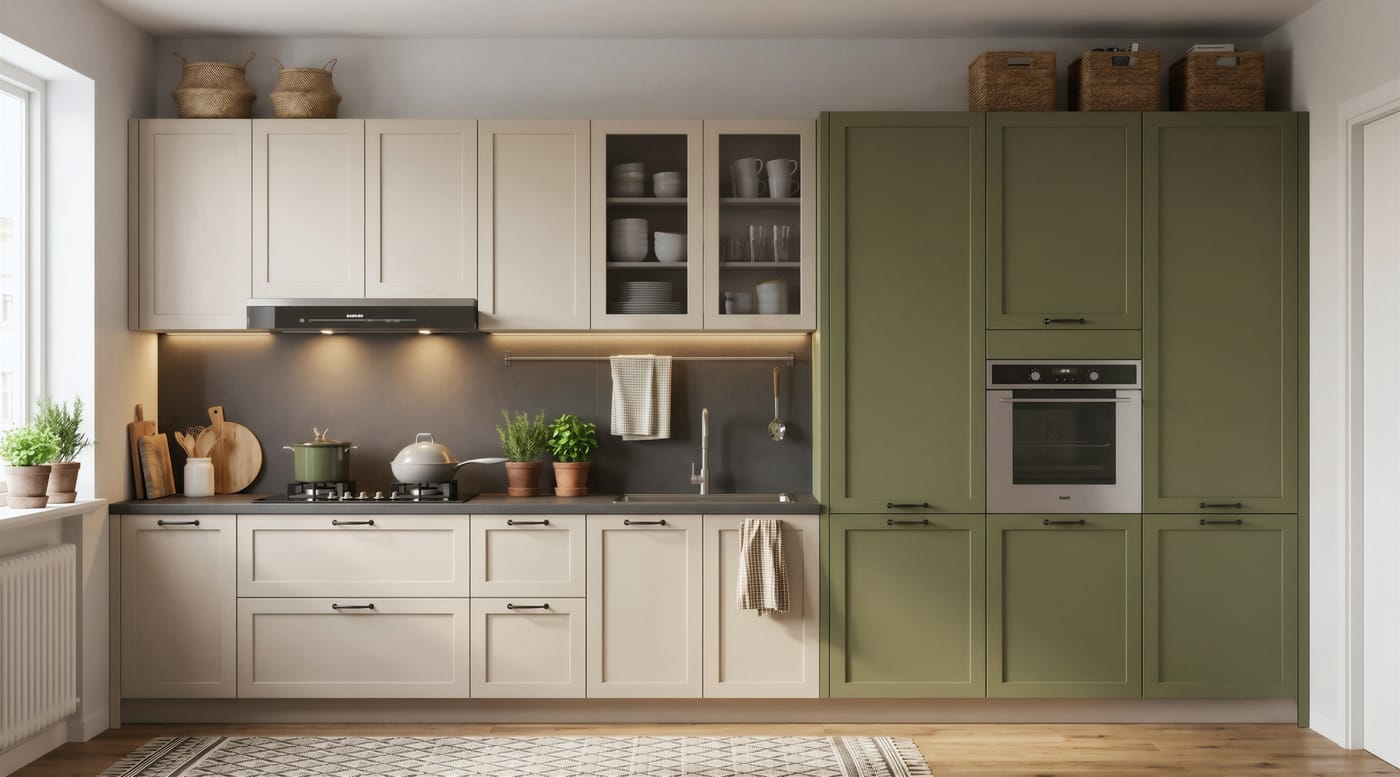

The same space at each level — concept renders to guide the decision, not photographs of a finished job. The exact build, materials and price are confirmed on your quotation.

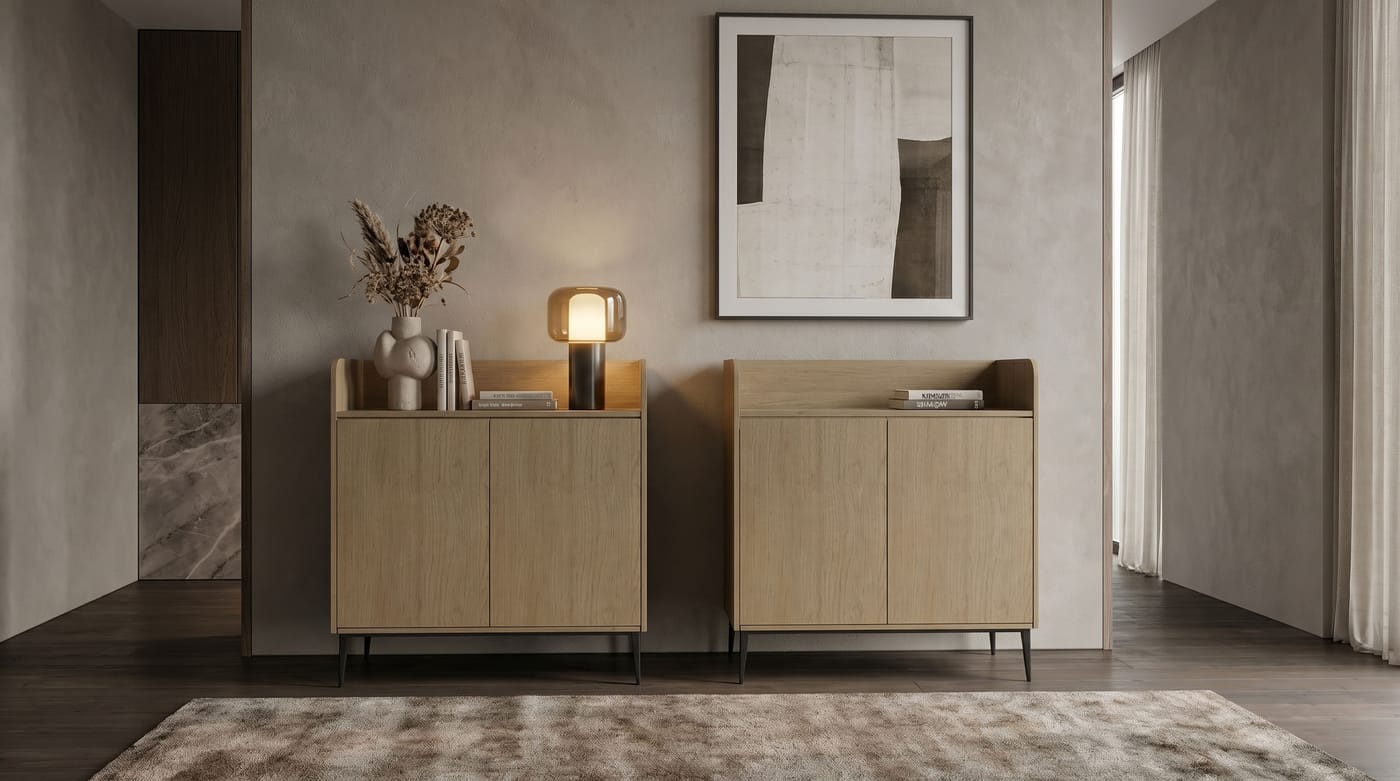

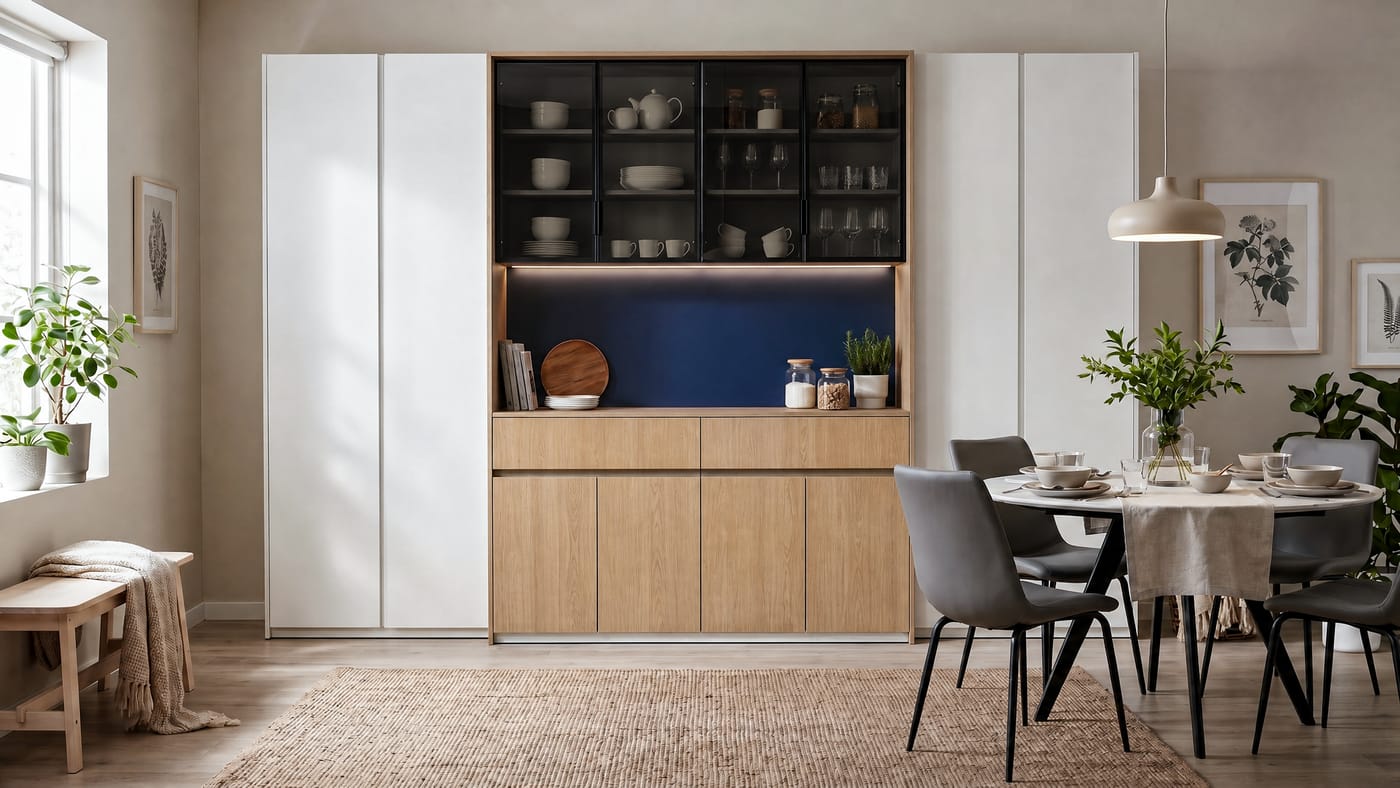

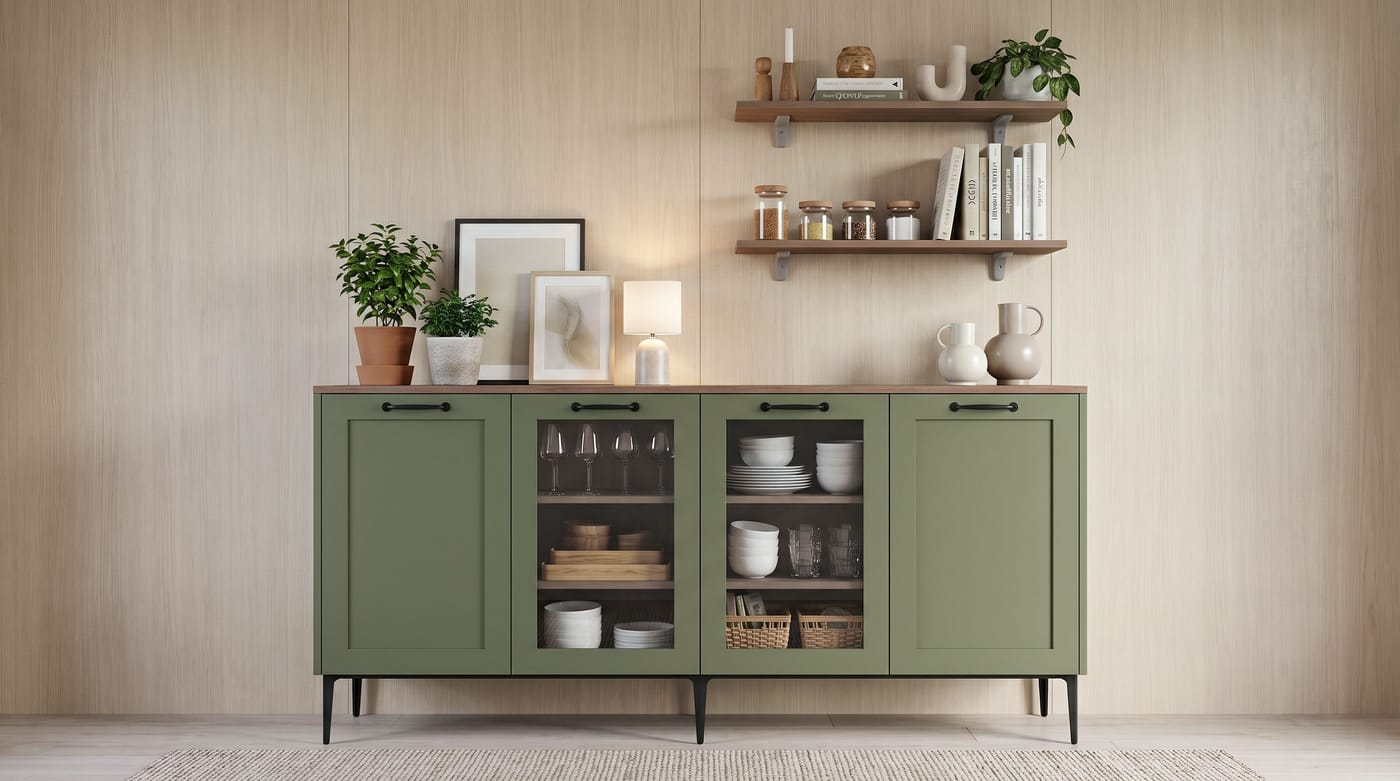

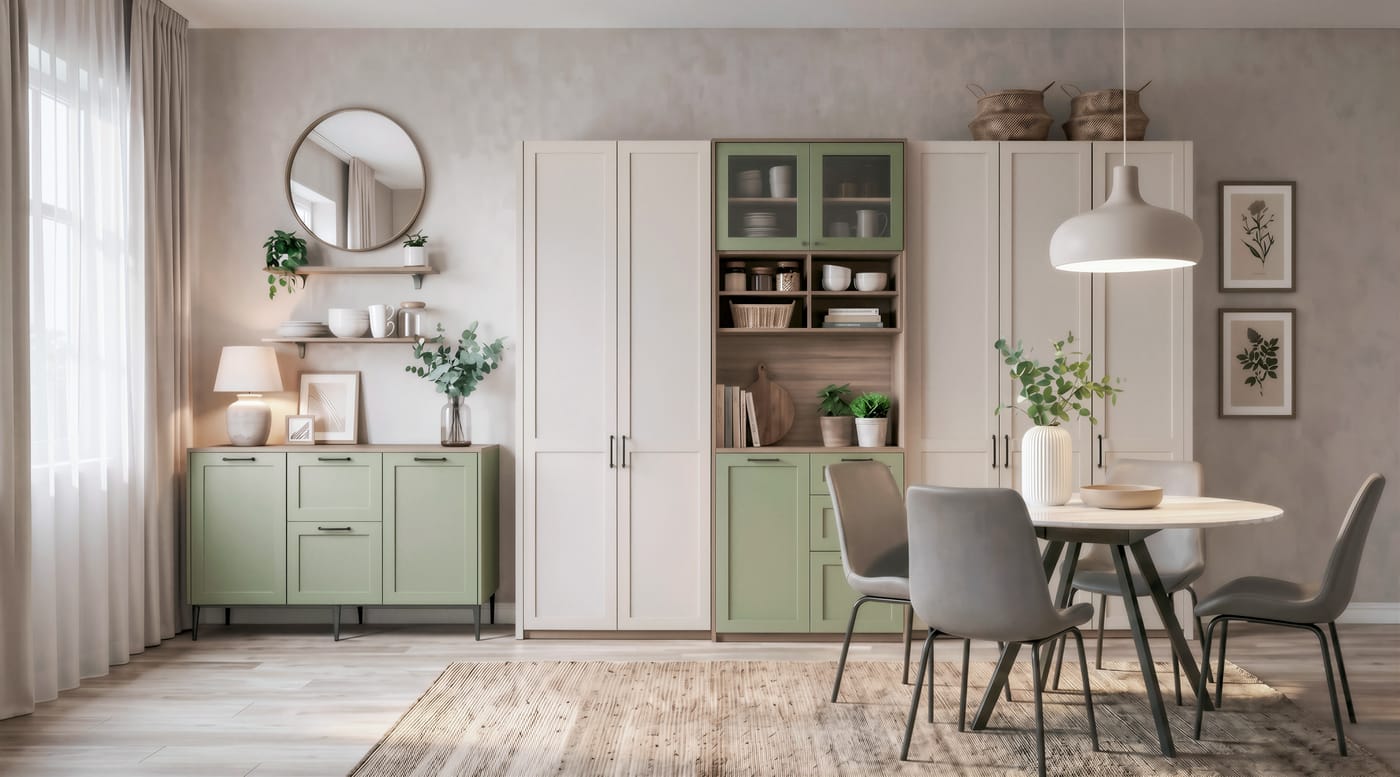

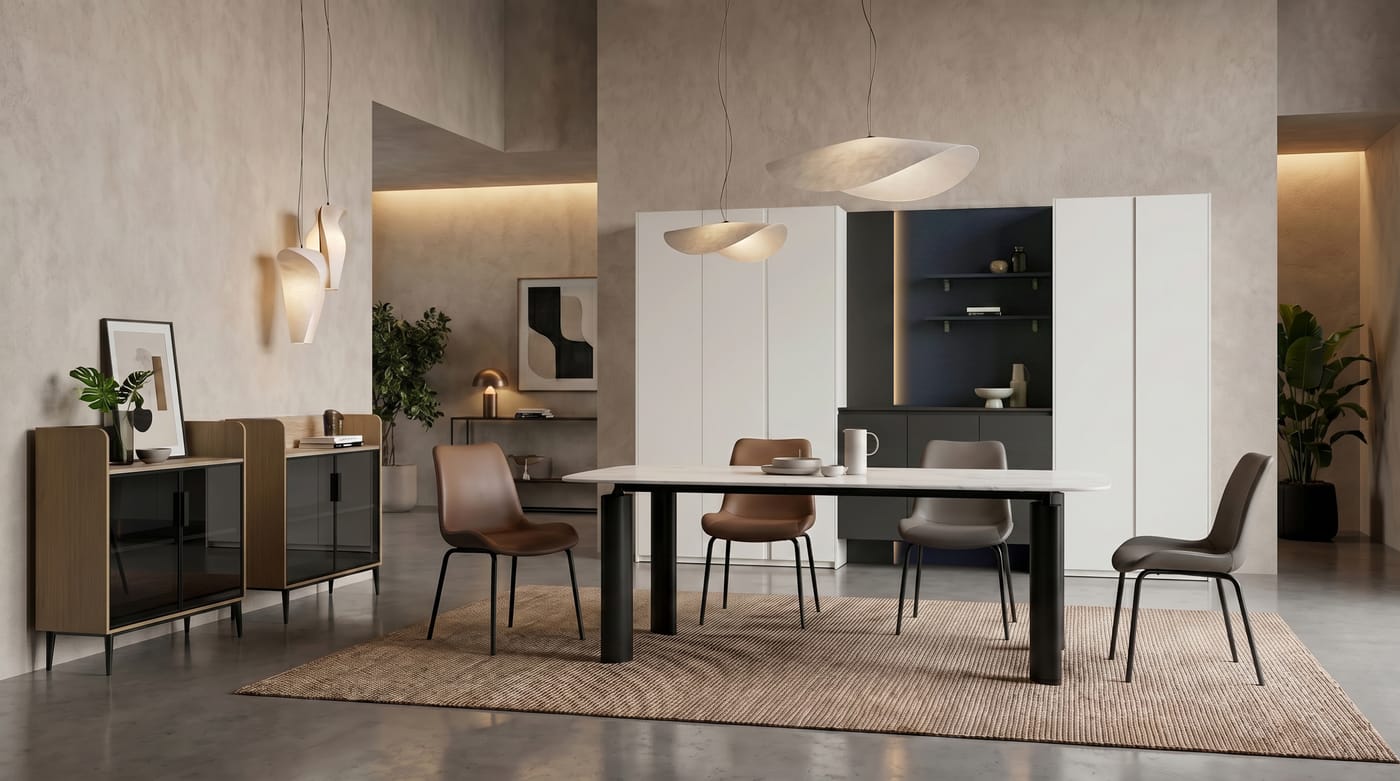

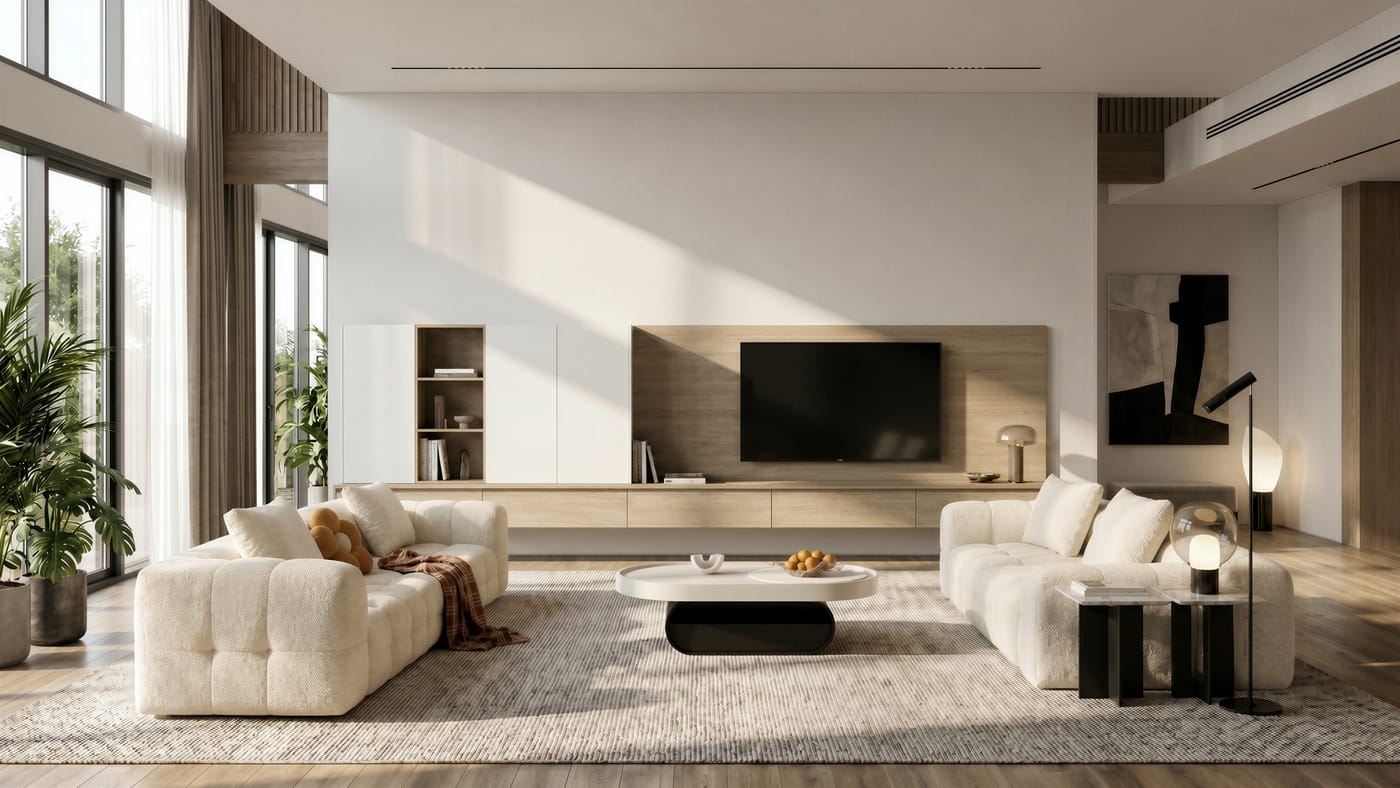

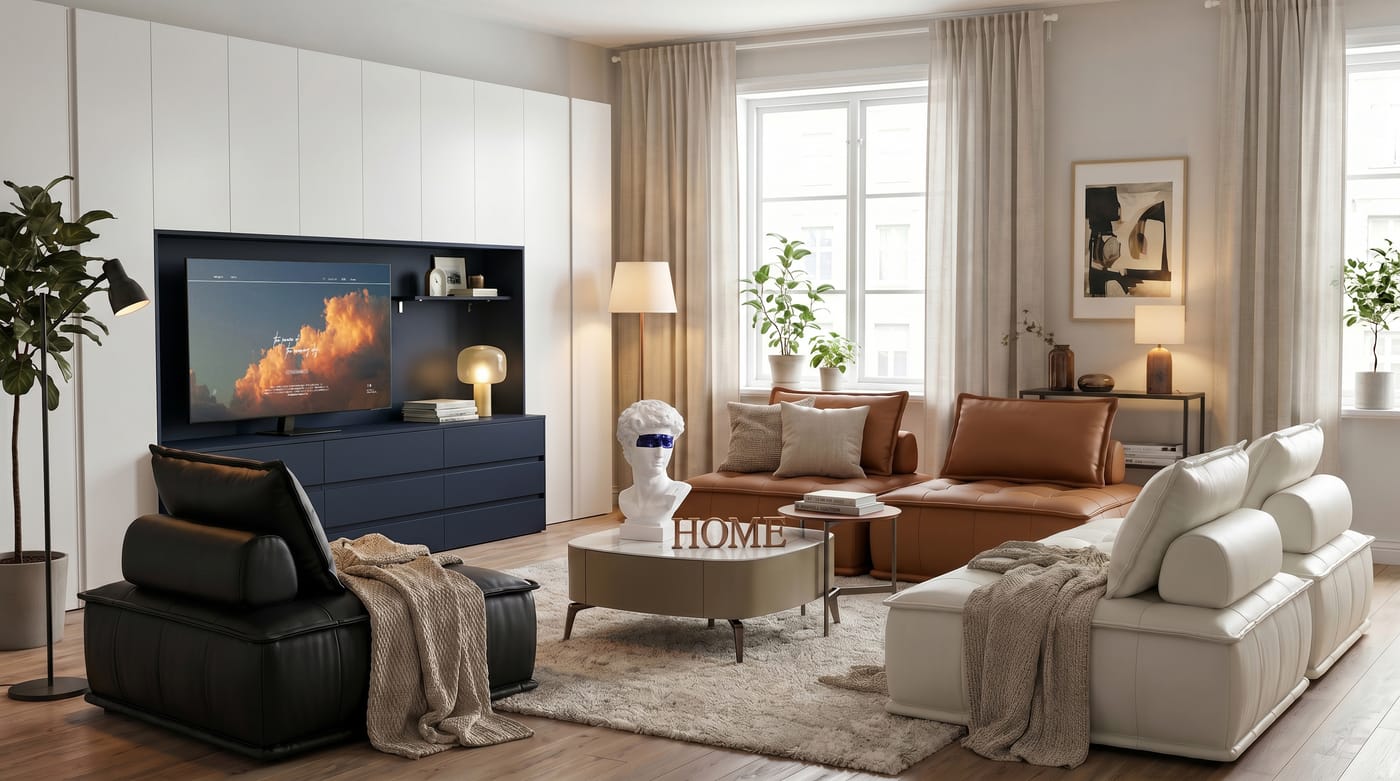

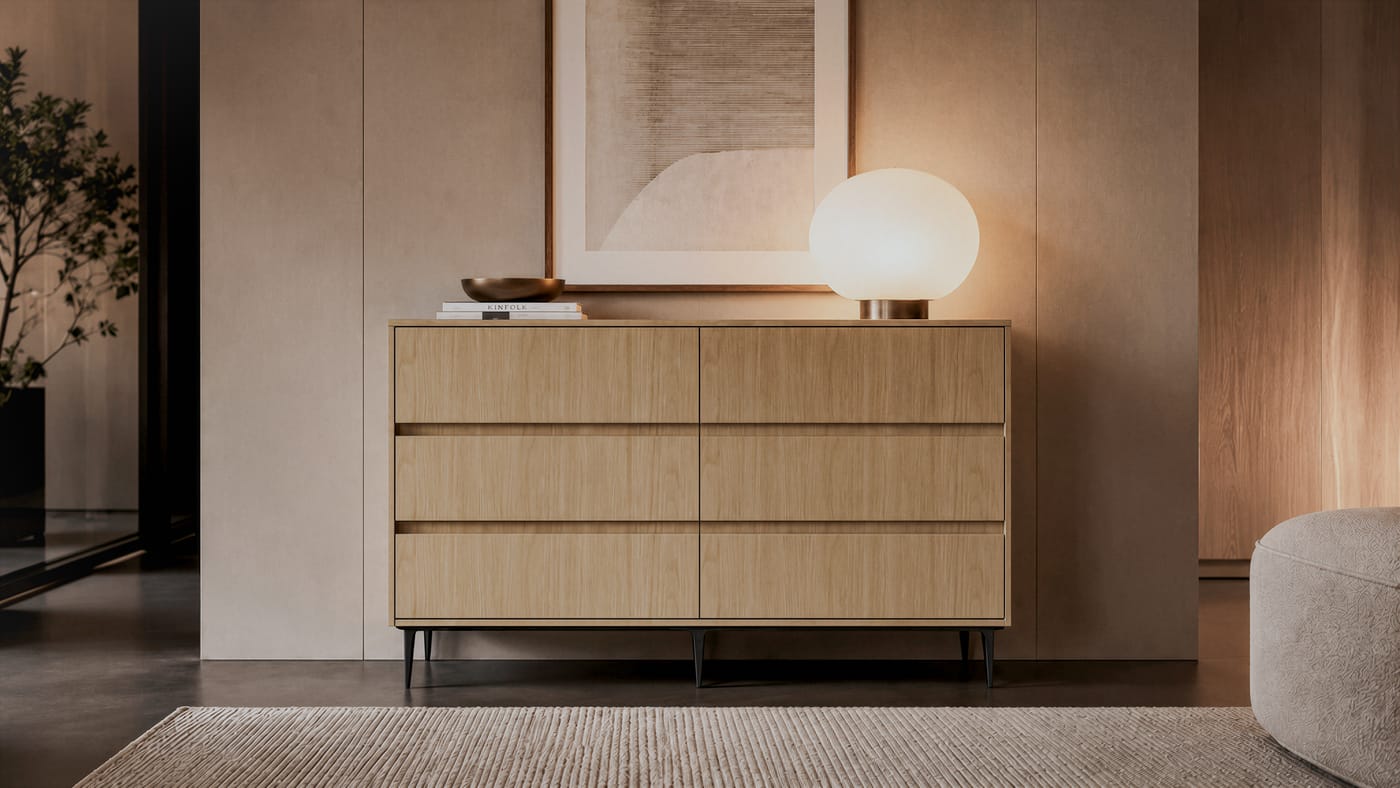

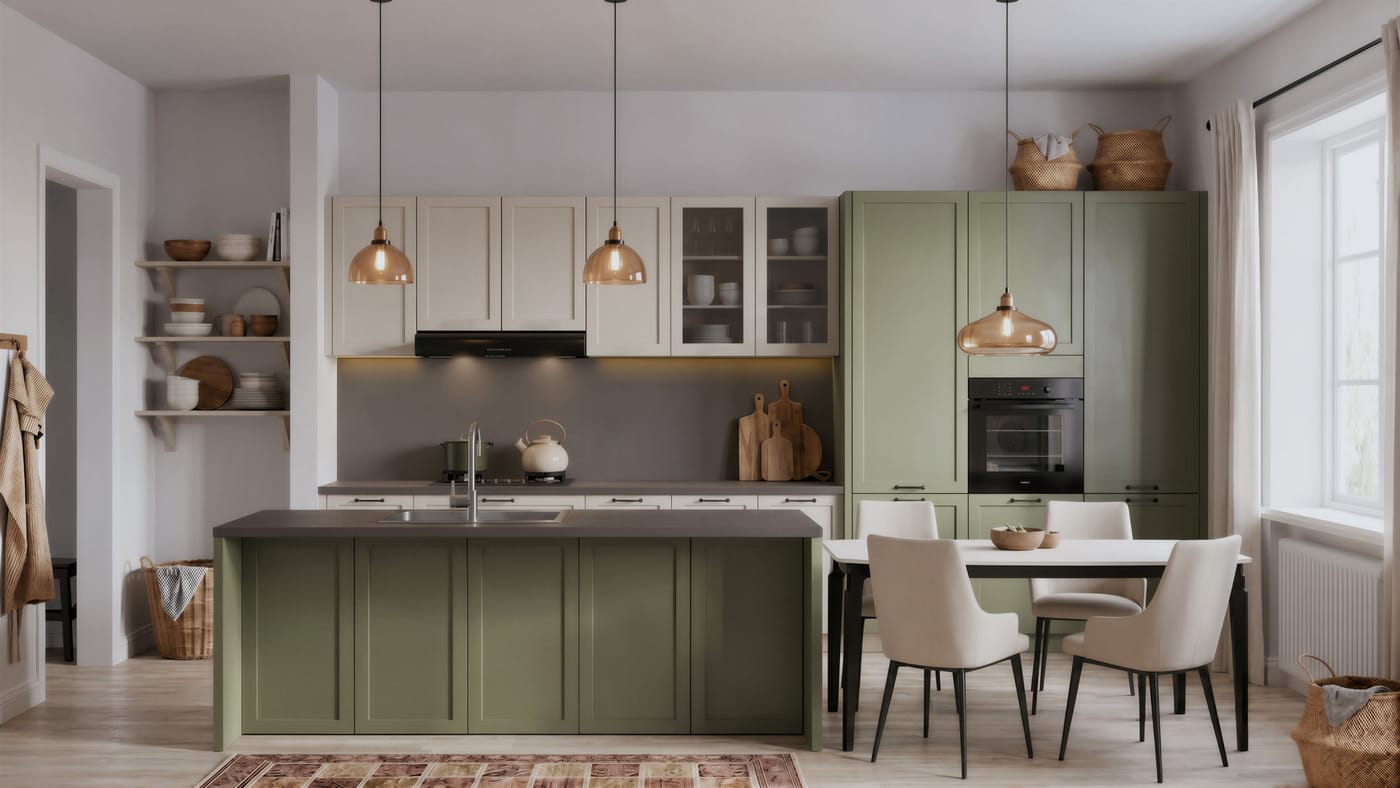

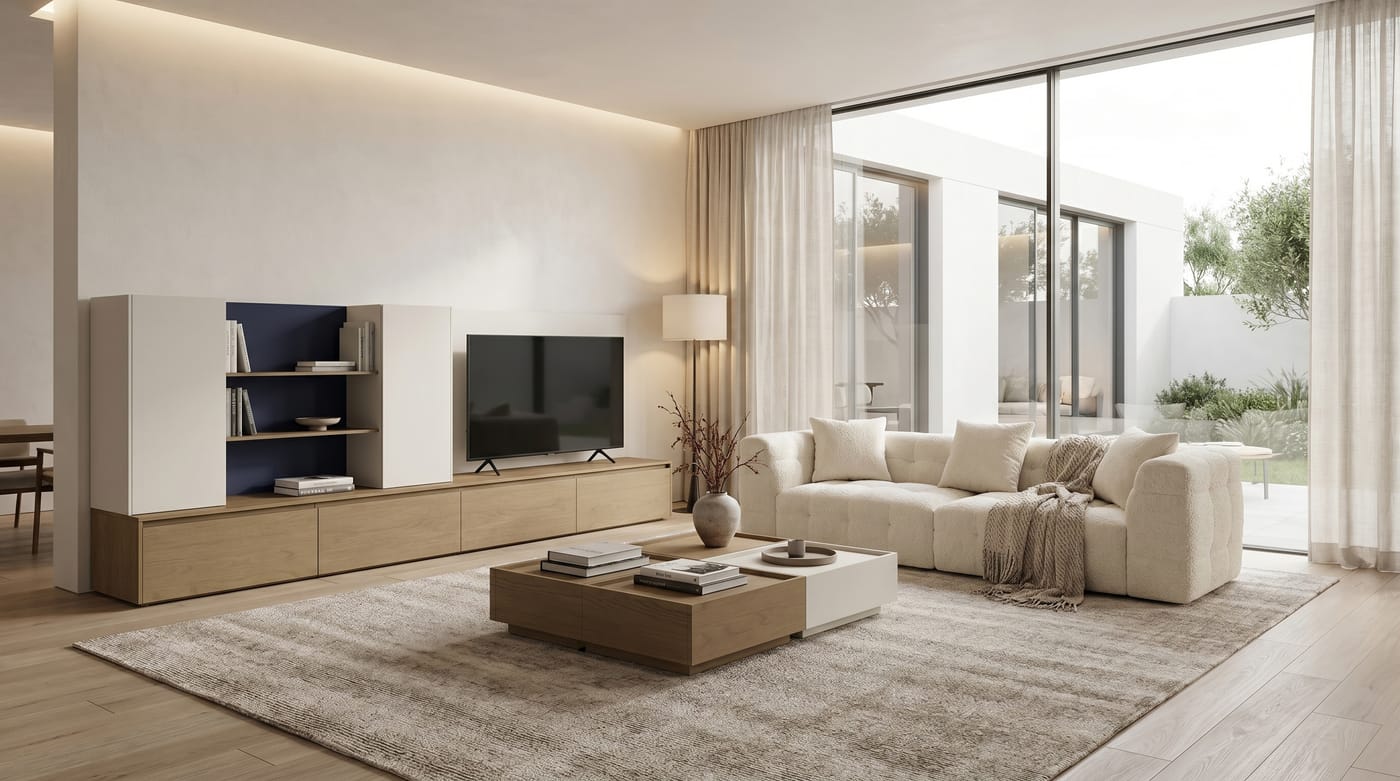

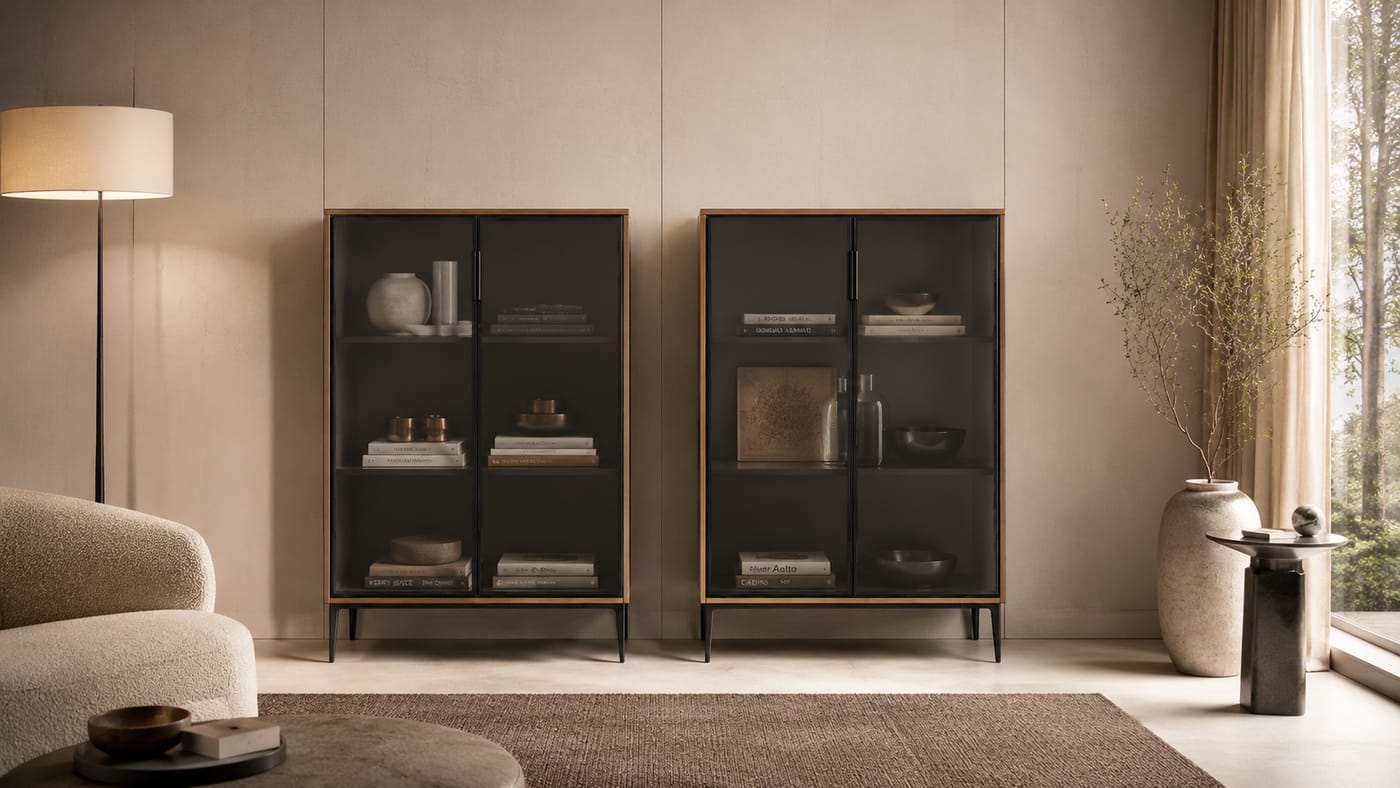

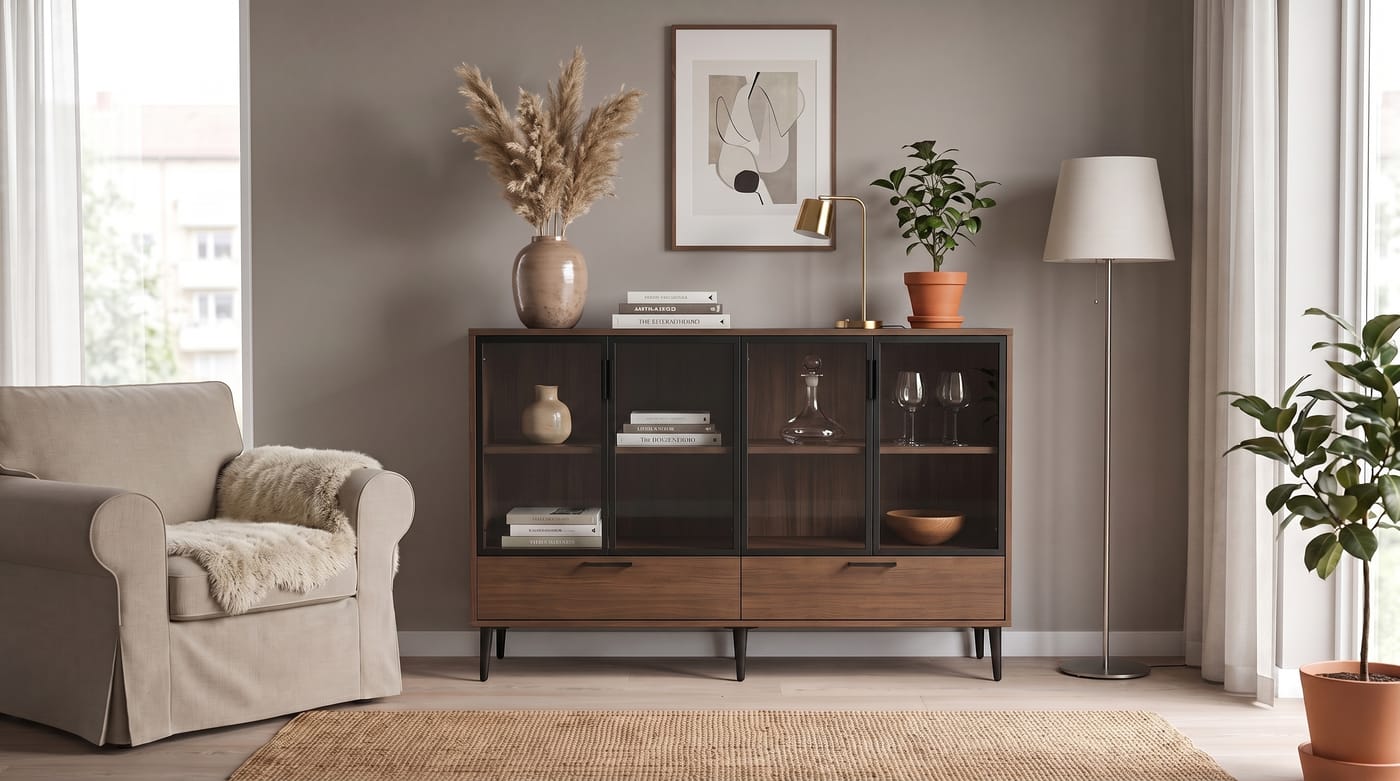

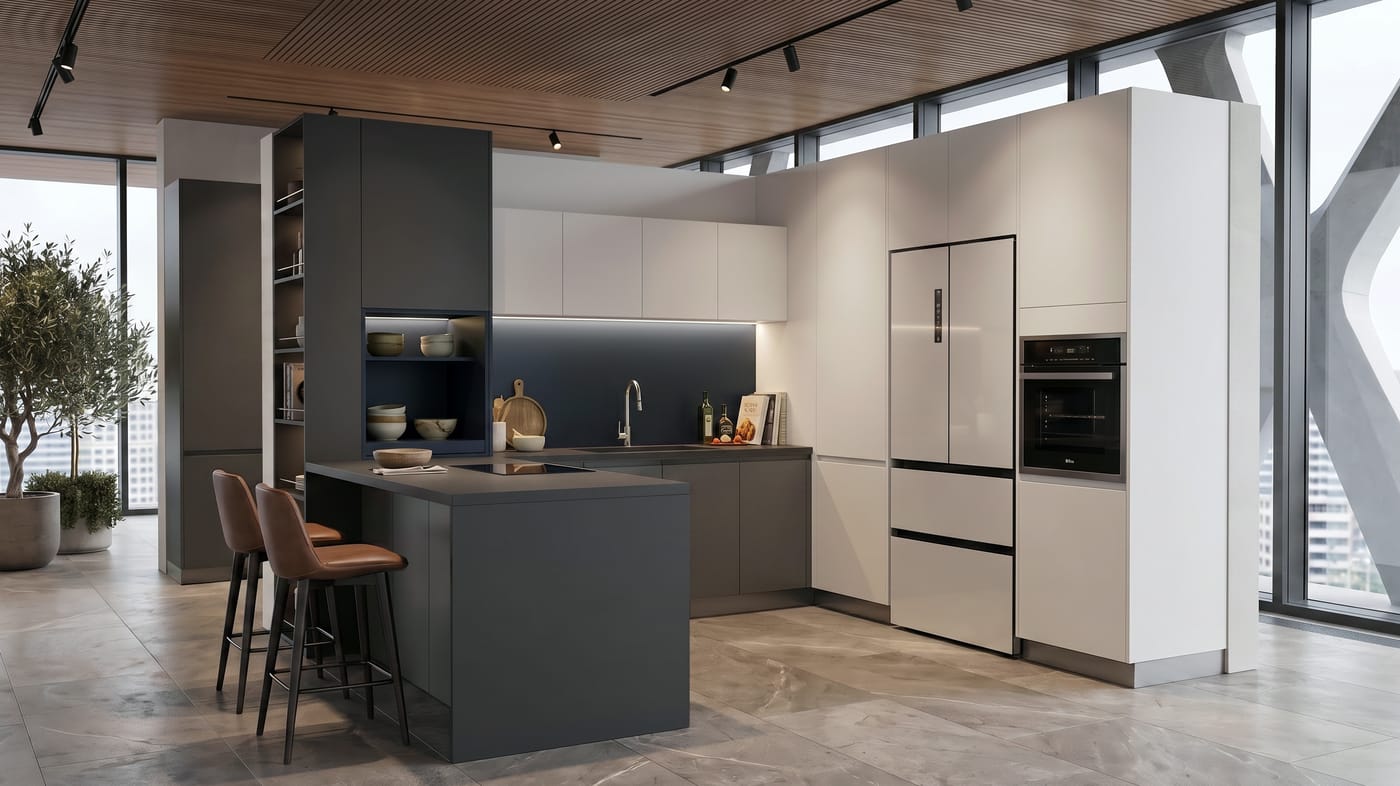

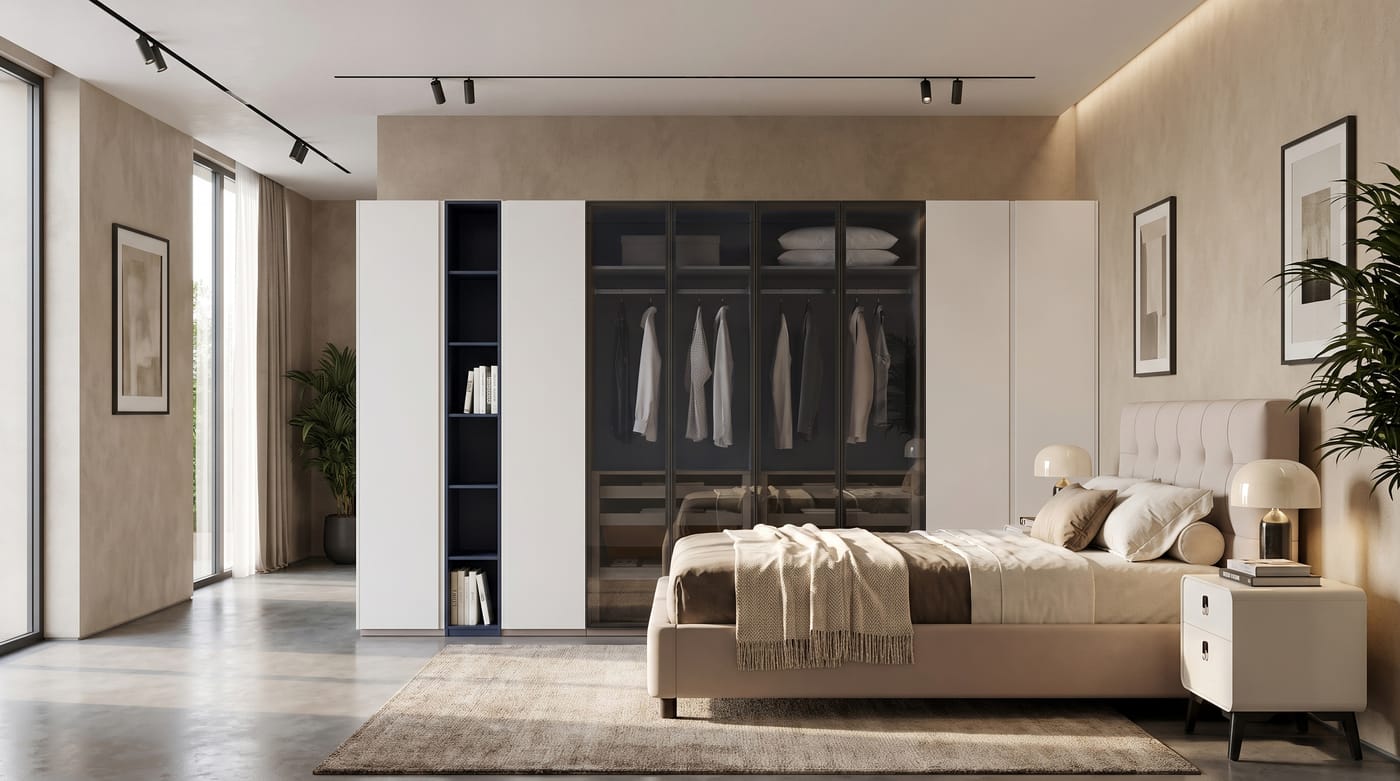

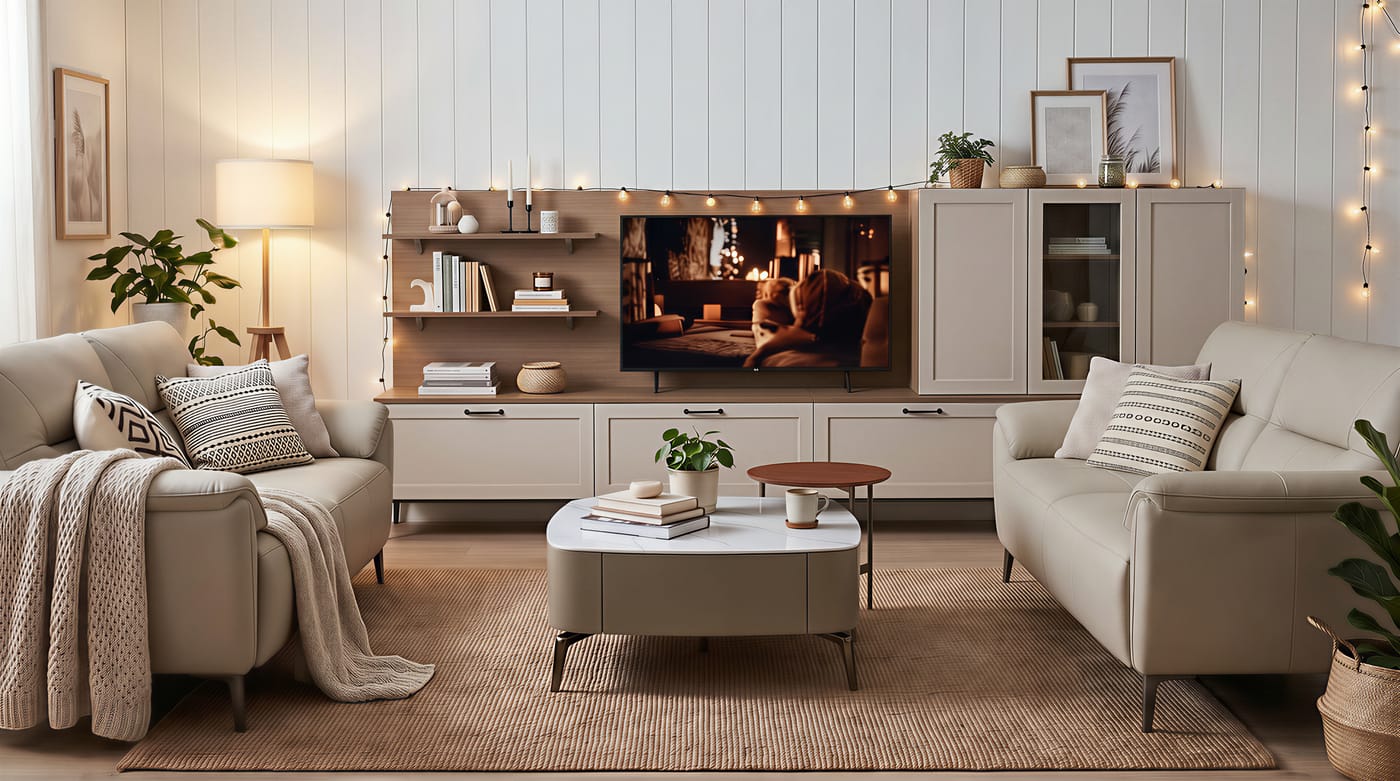

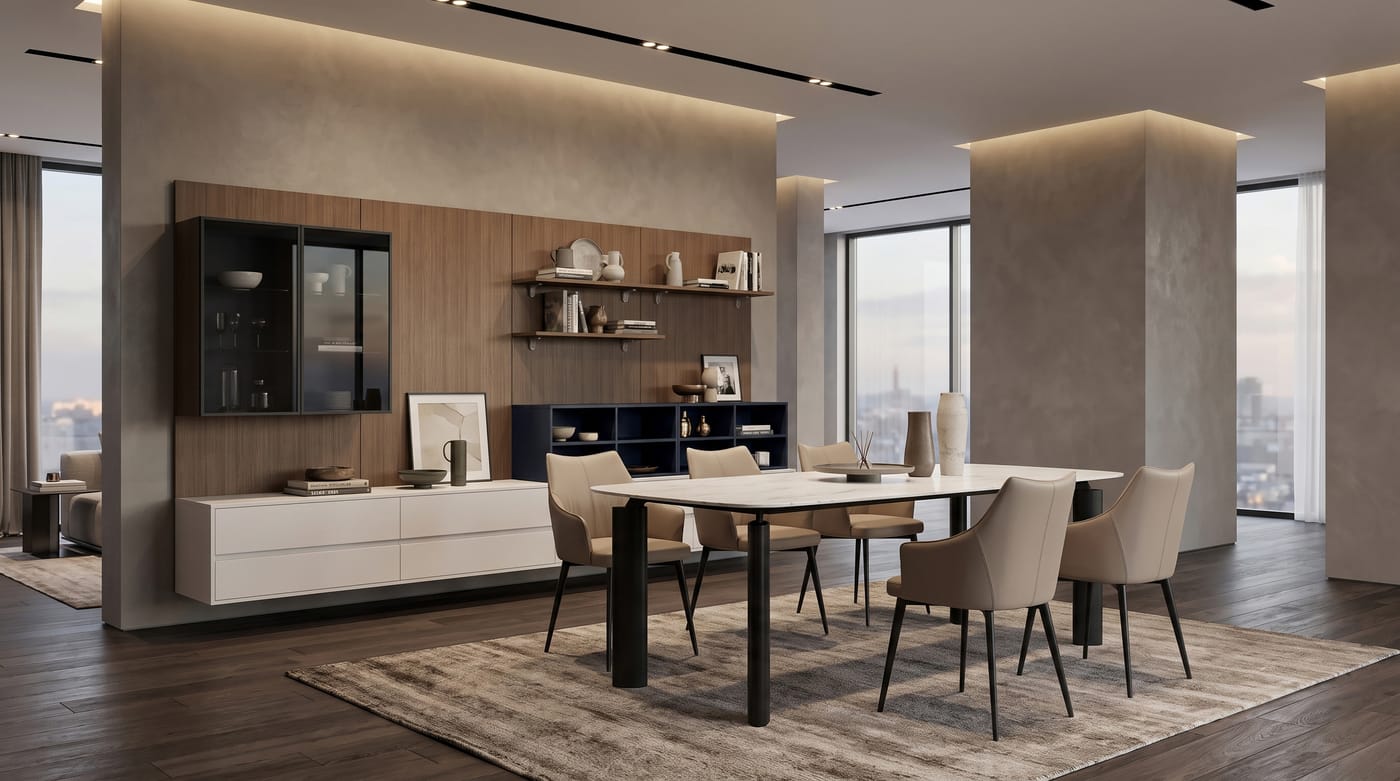

Design concepts · ELS Studio设计概念 · ELS StudioKonsep reka bentuk · ELS Studio
See the look — then build it先看造型——再打造它Lihat rupanya — kemudian binalah

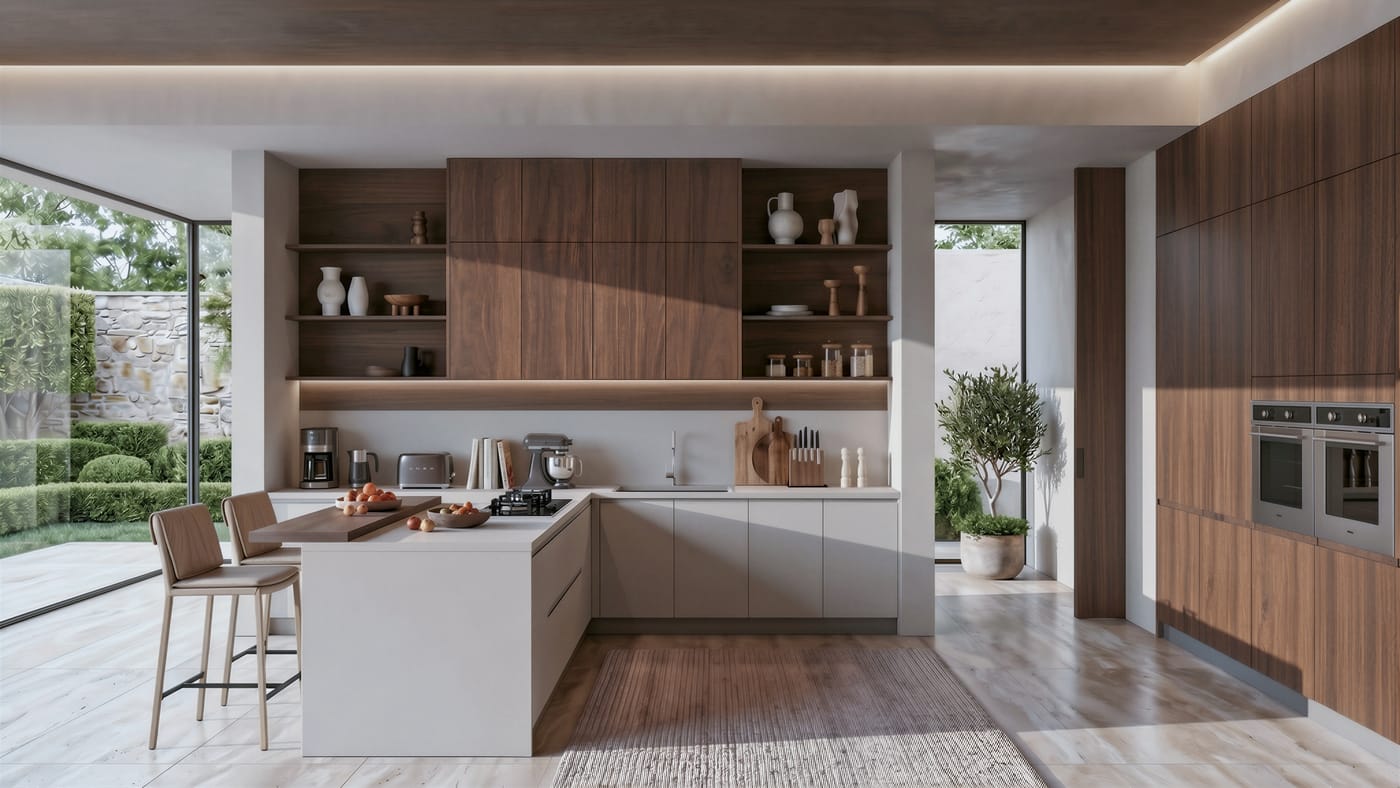

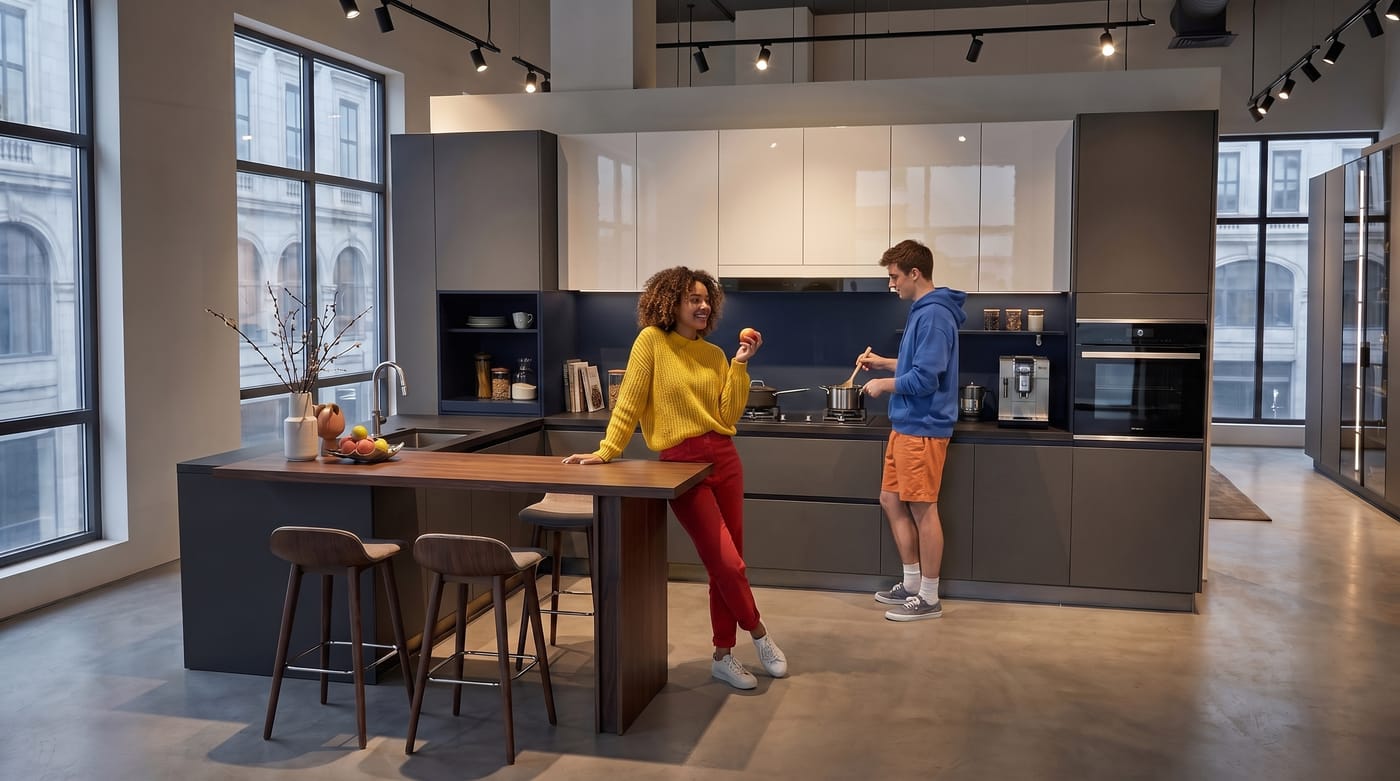

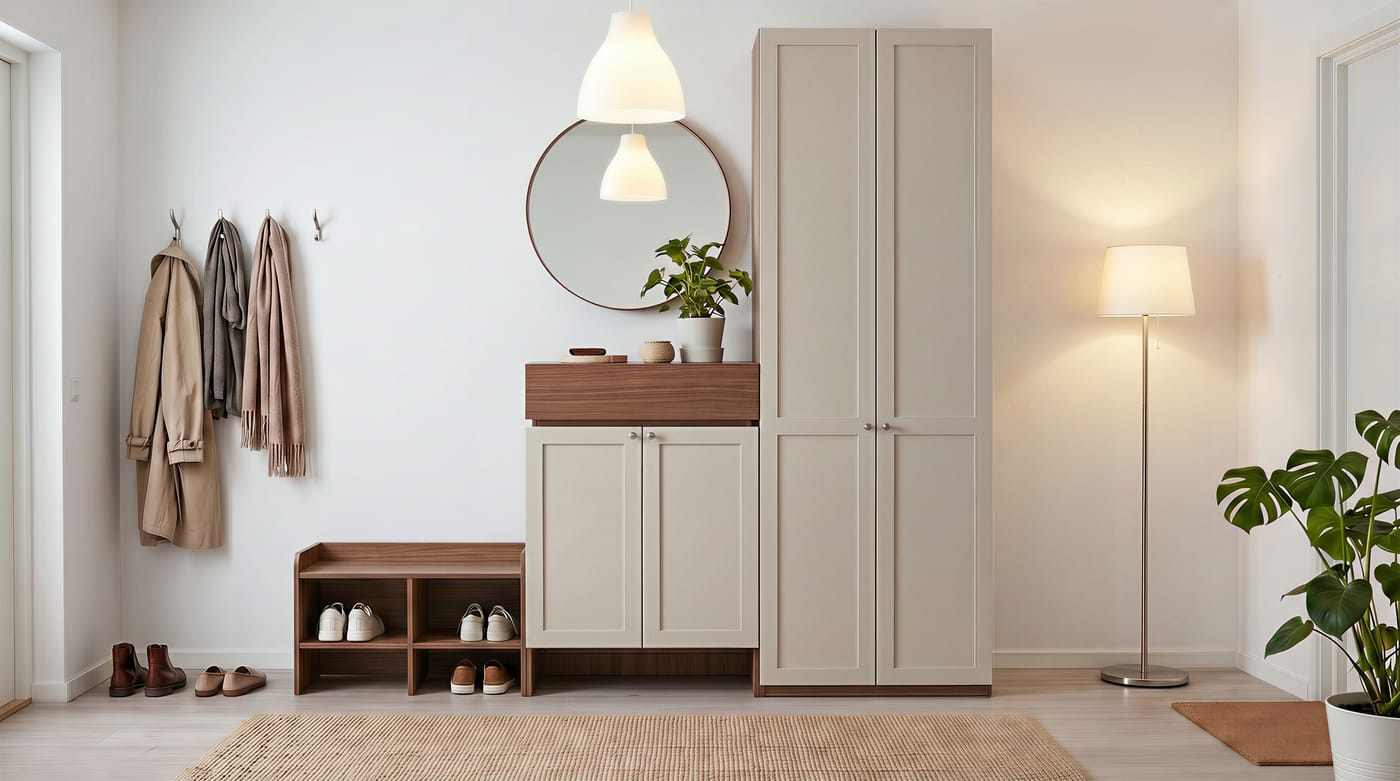

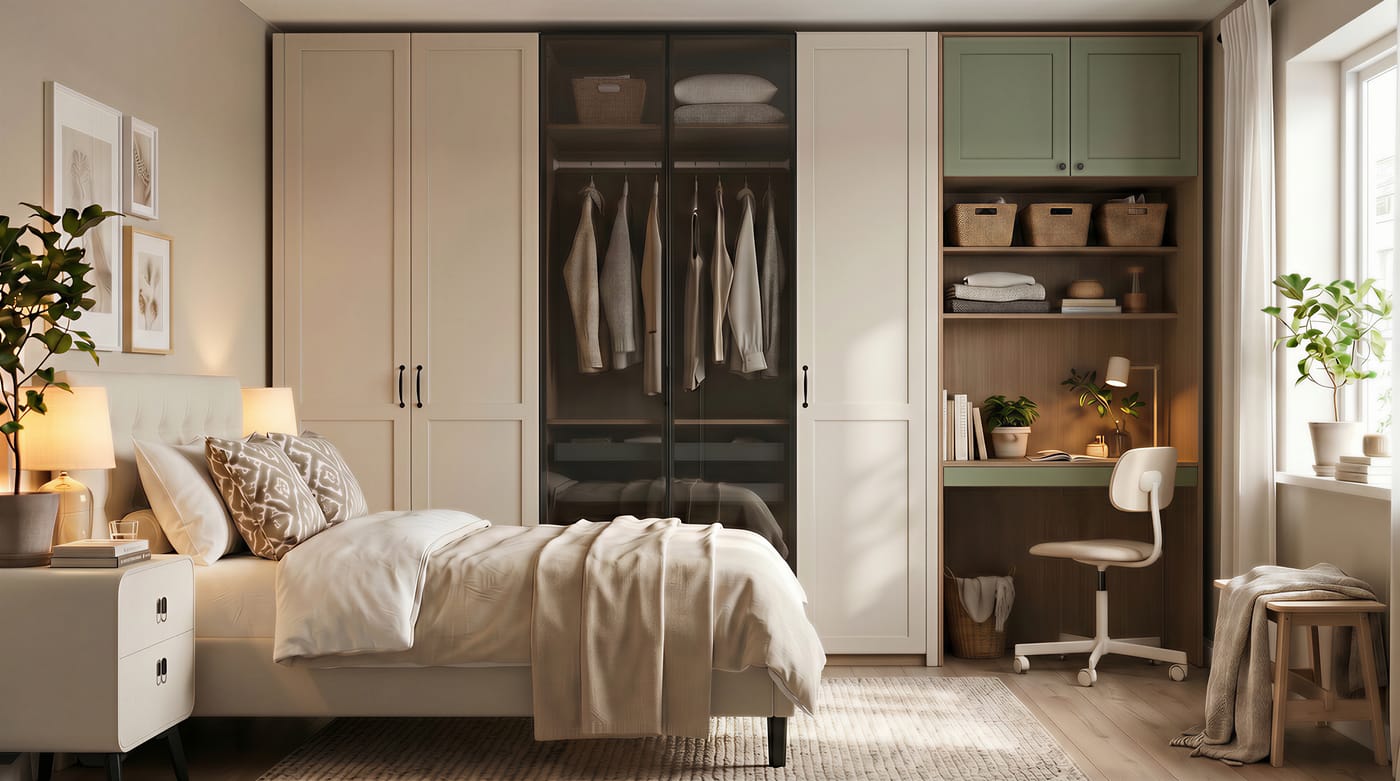

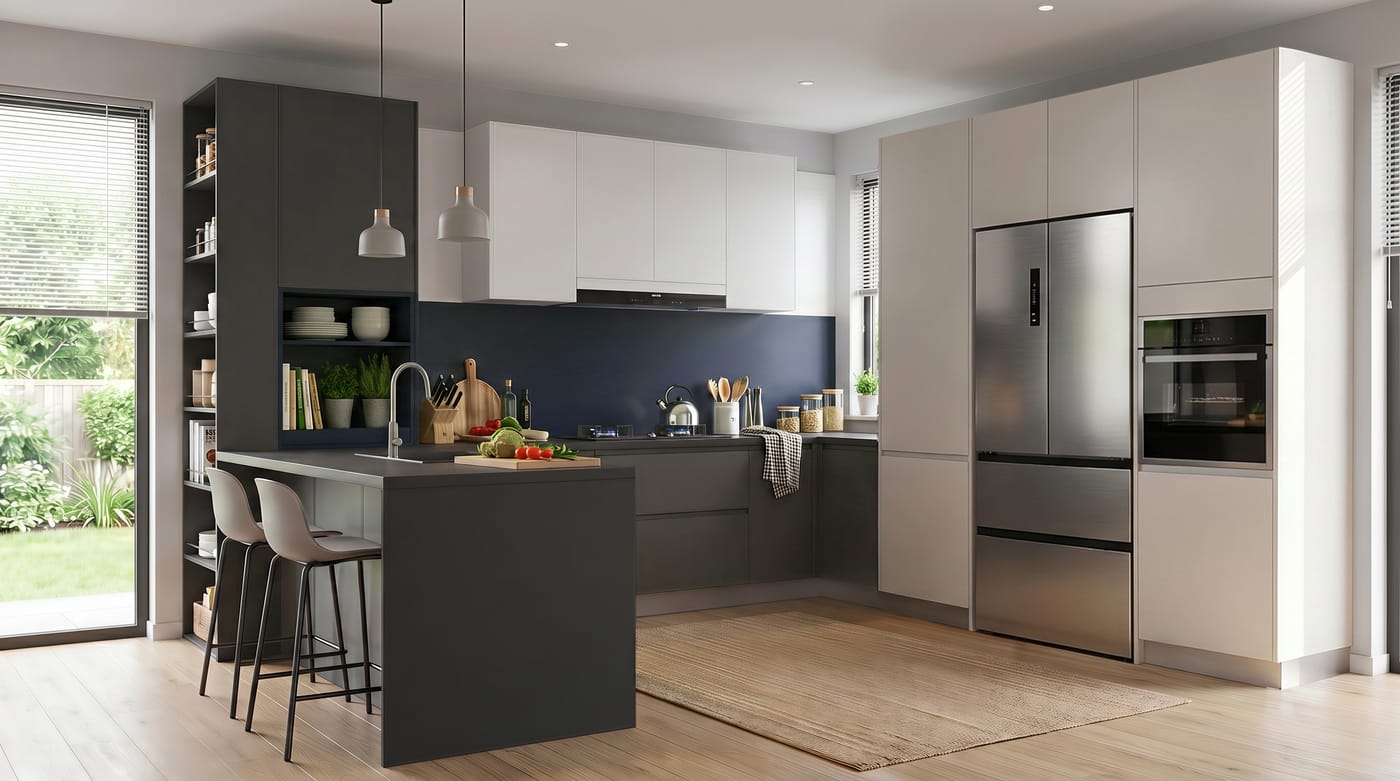

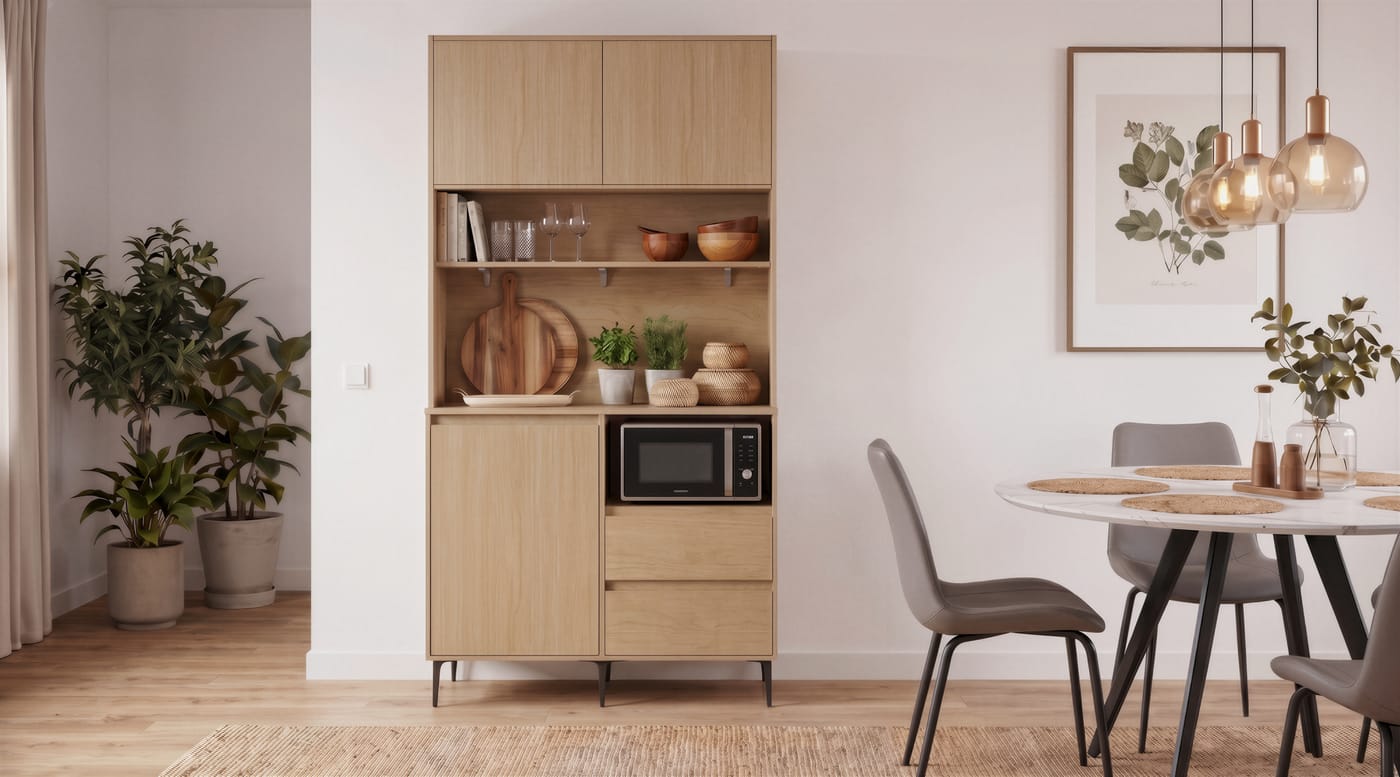

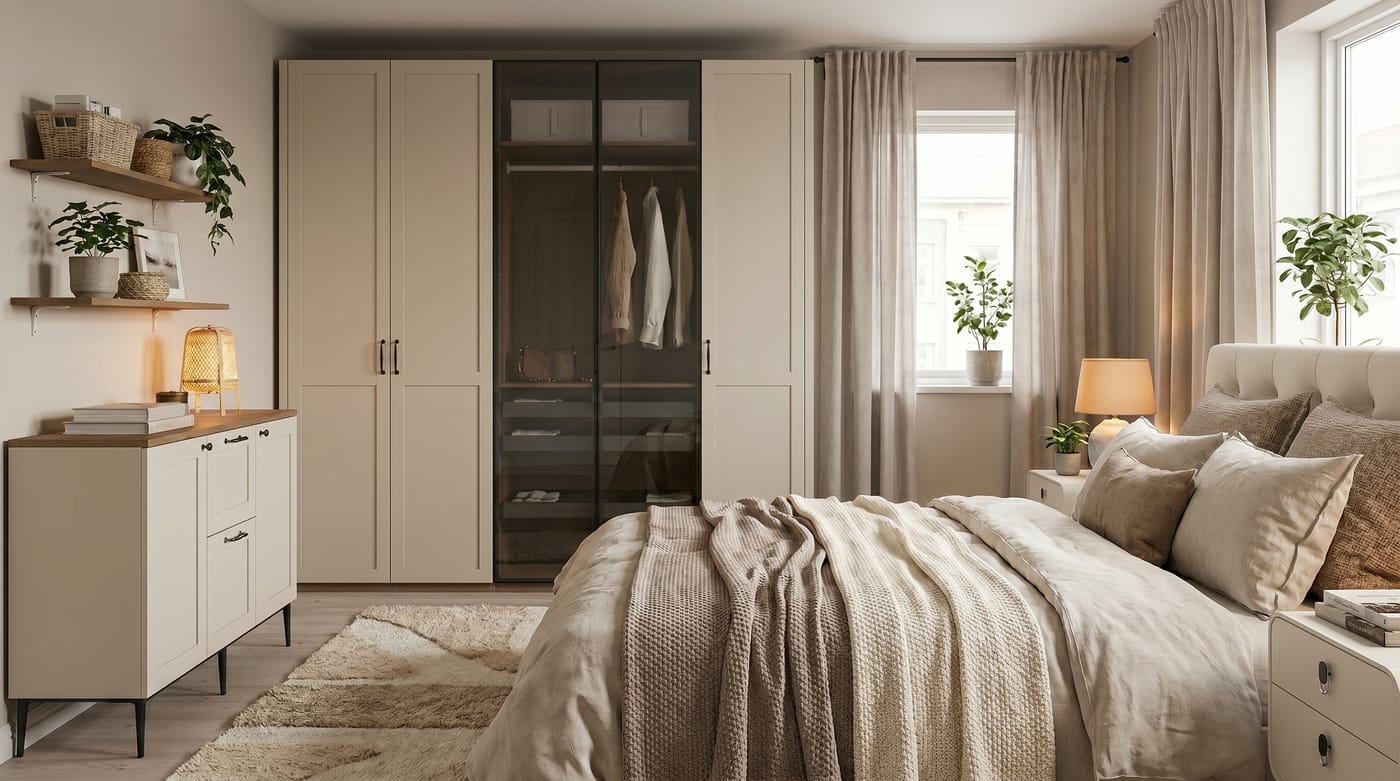

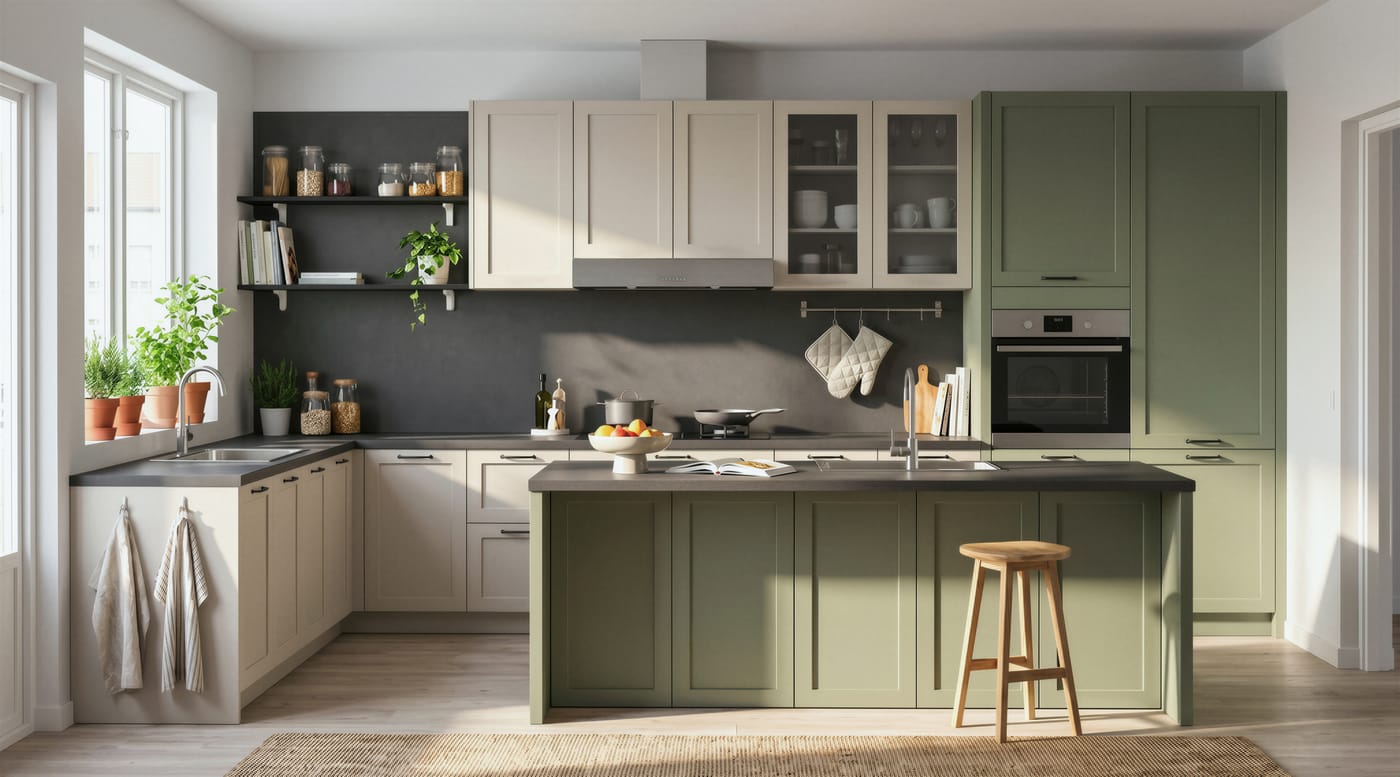

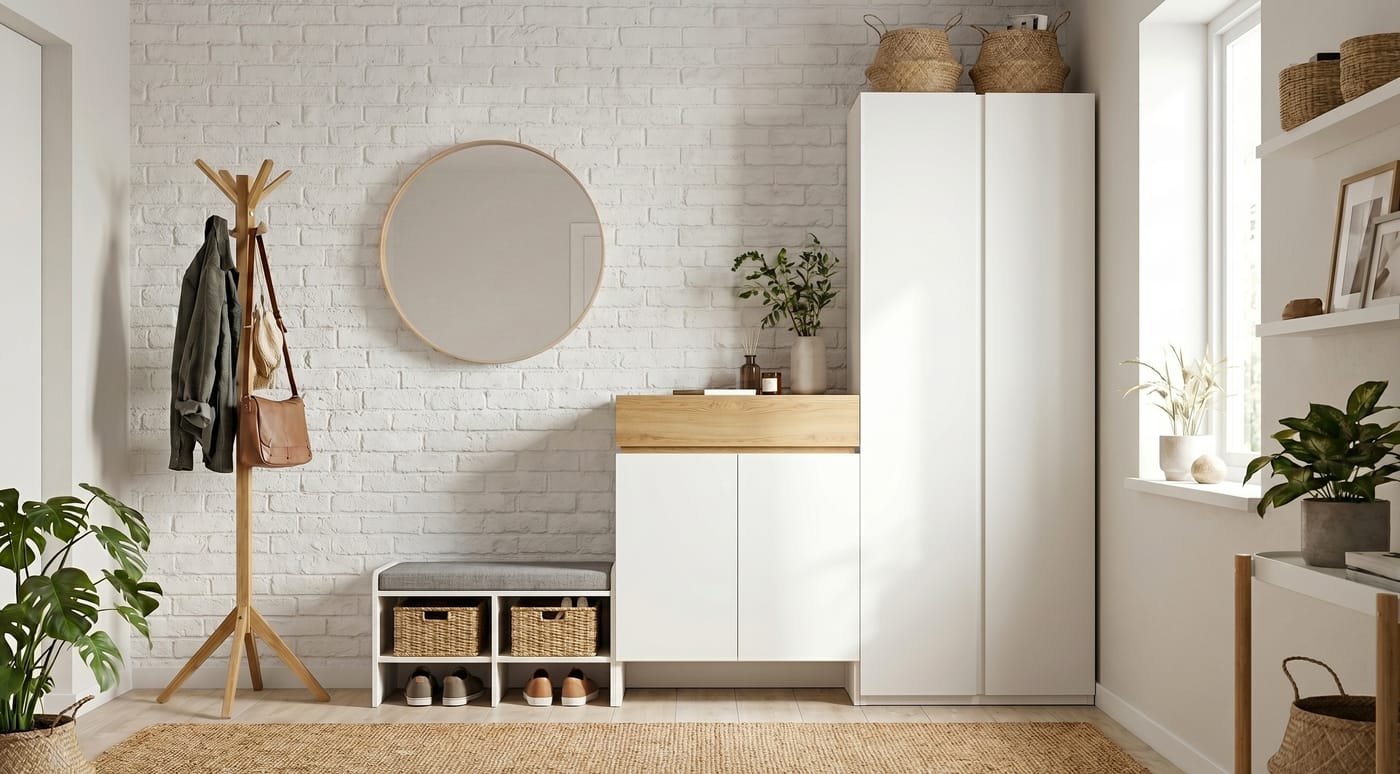

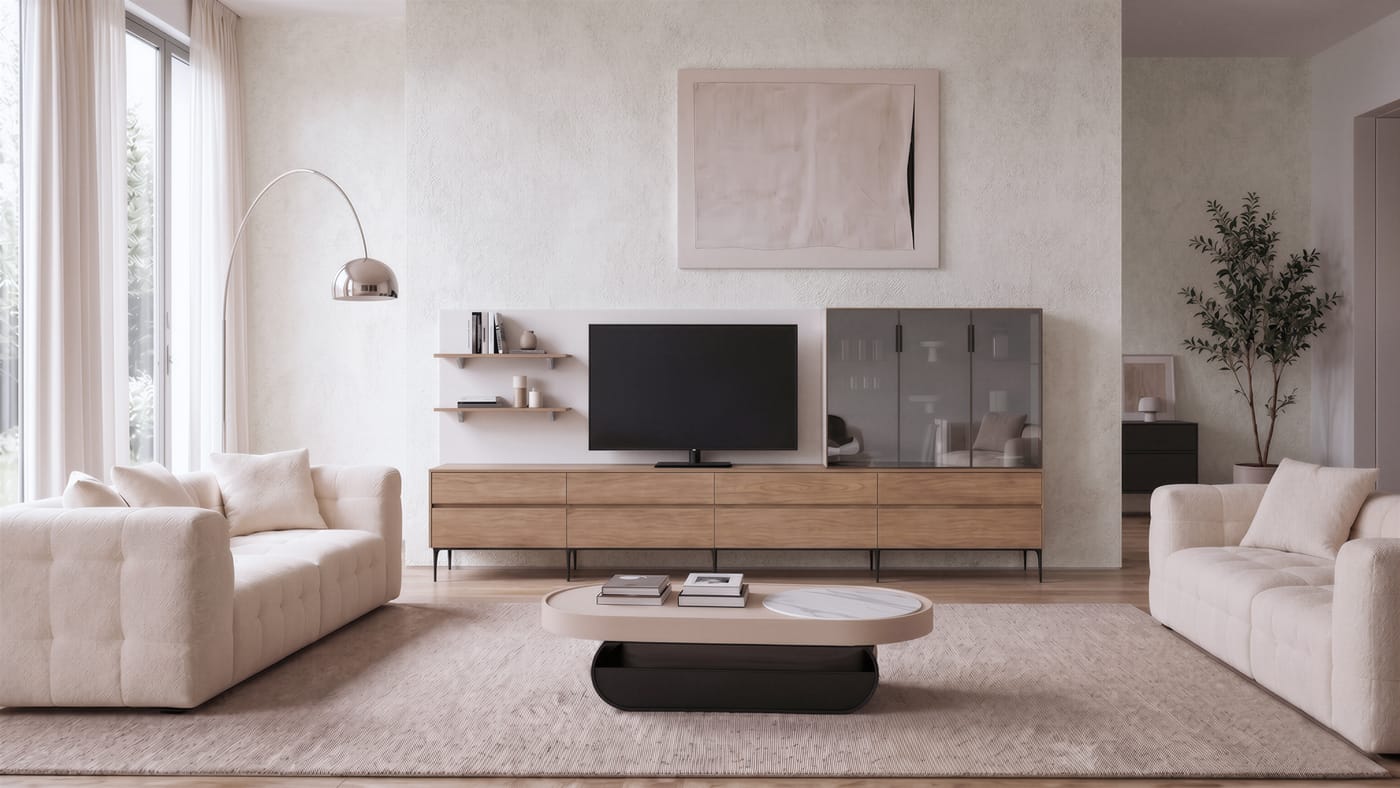

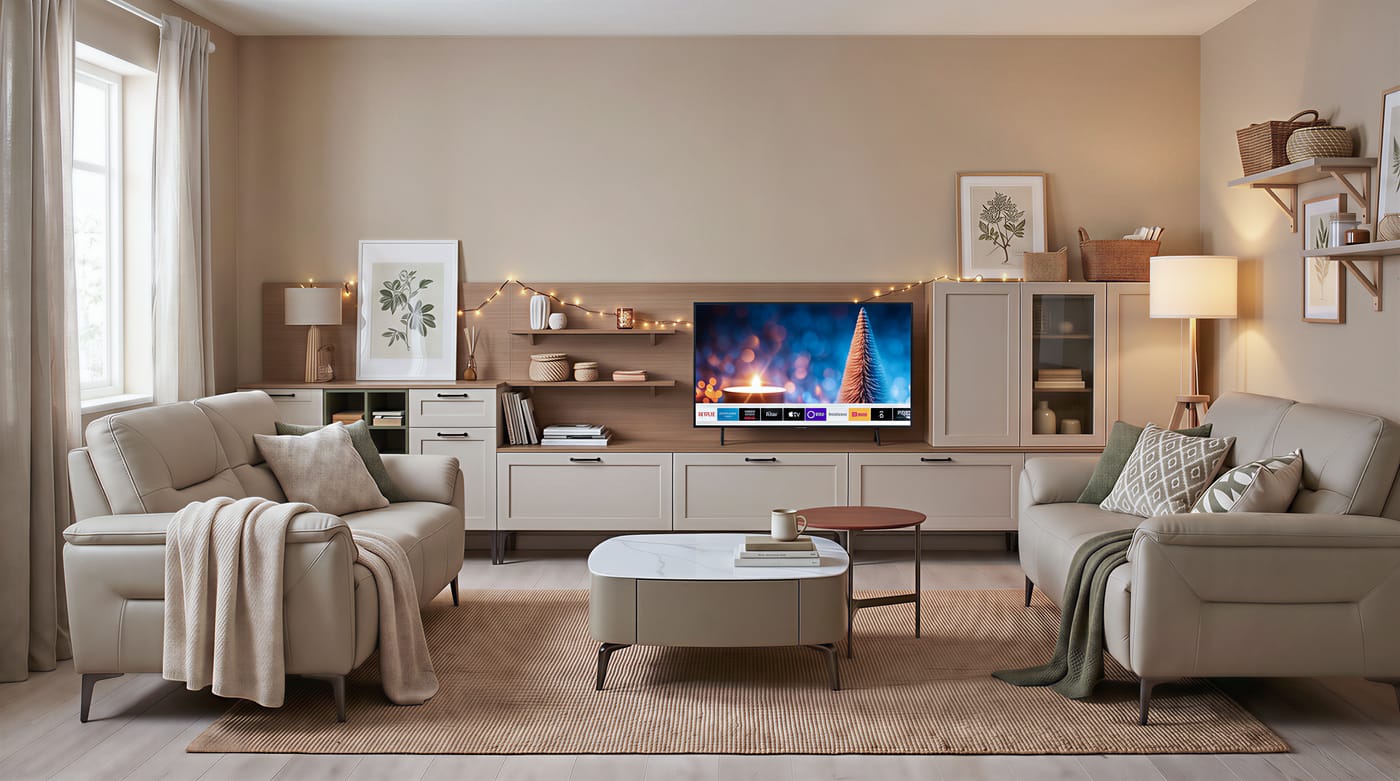

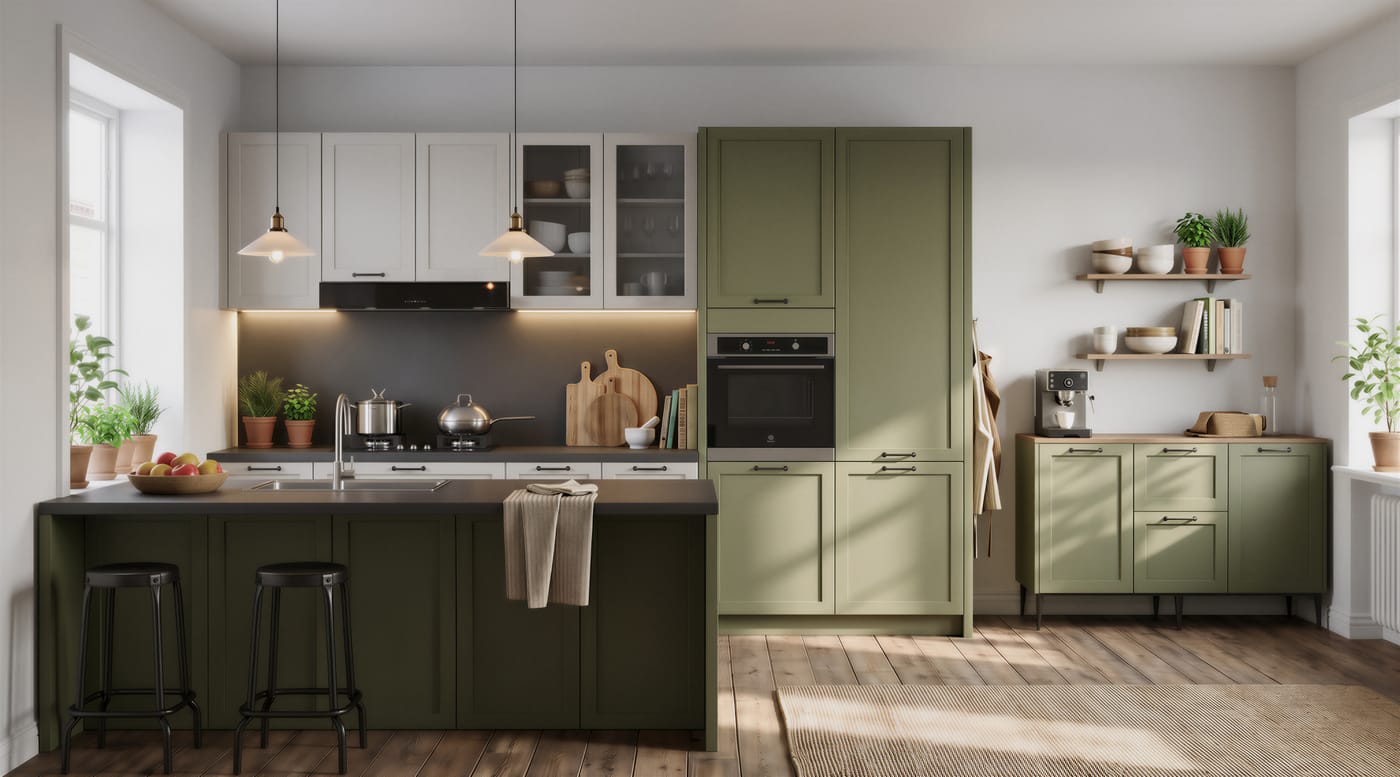

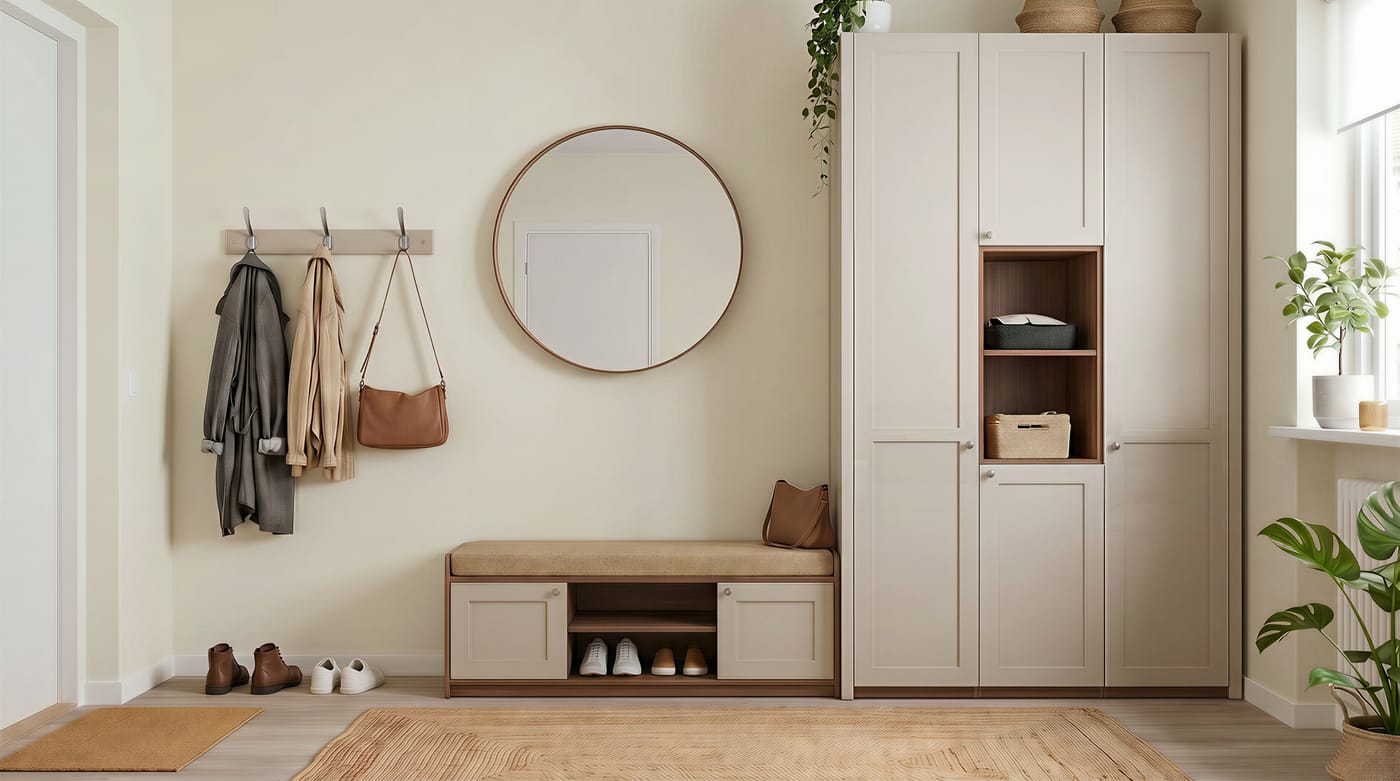

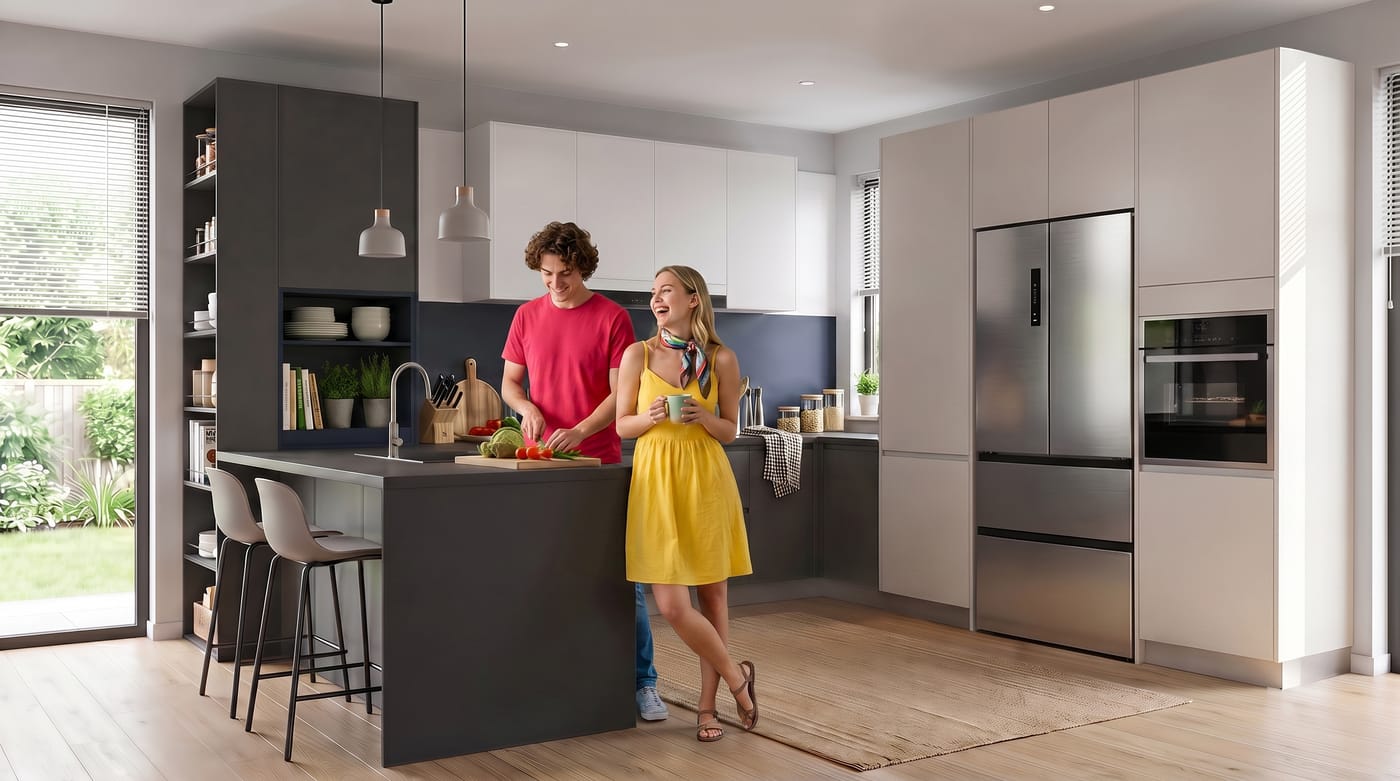

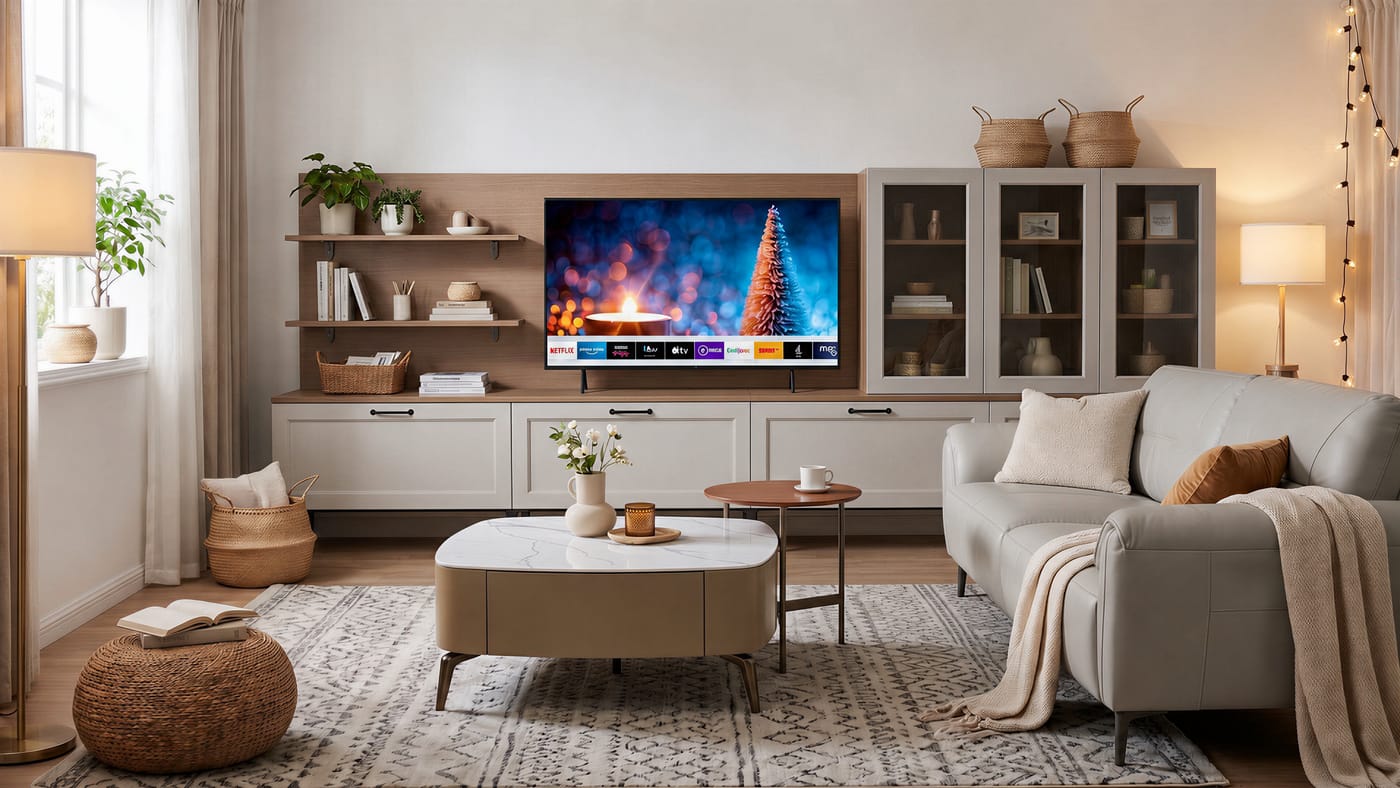

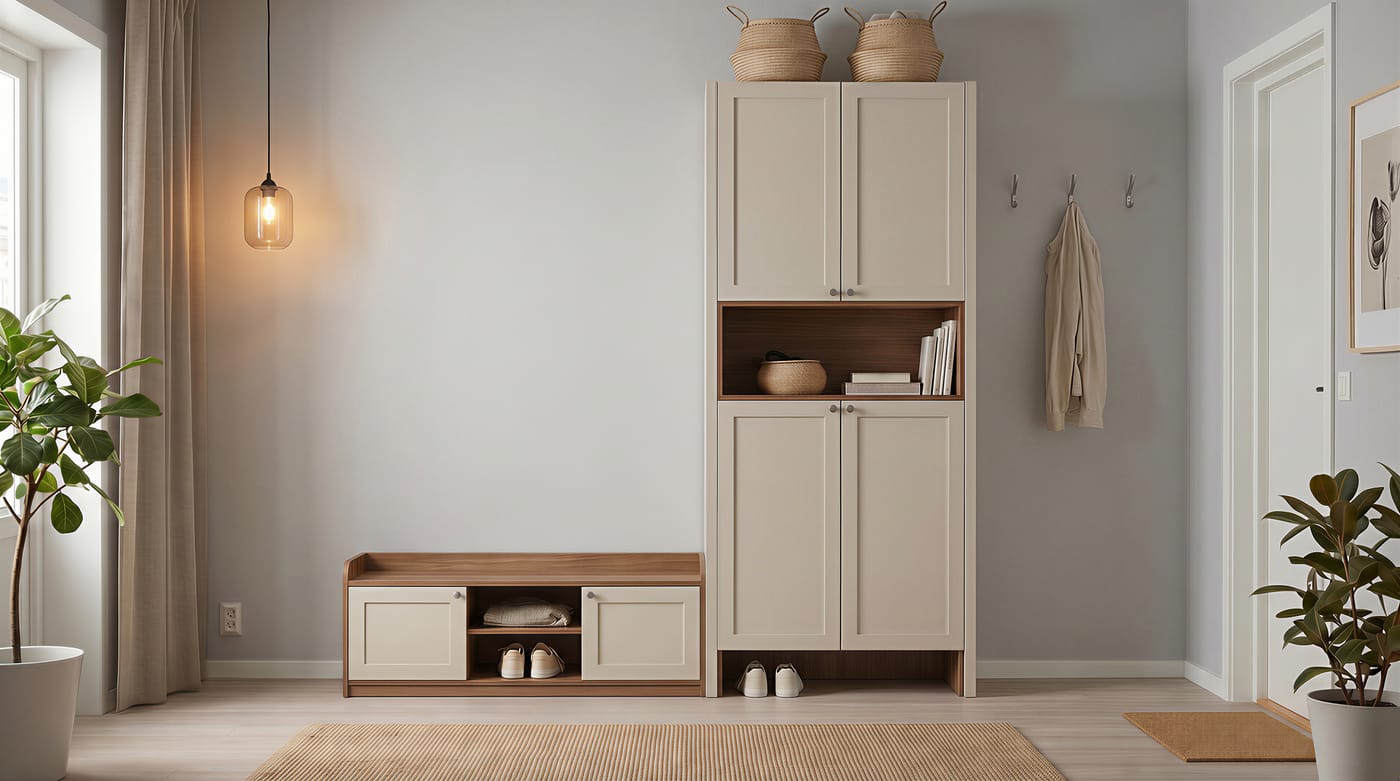

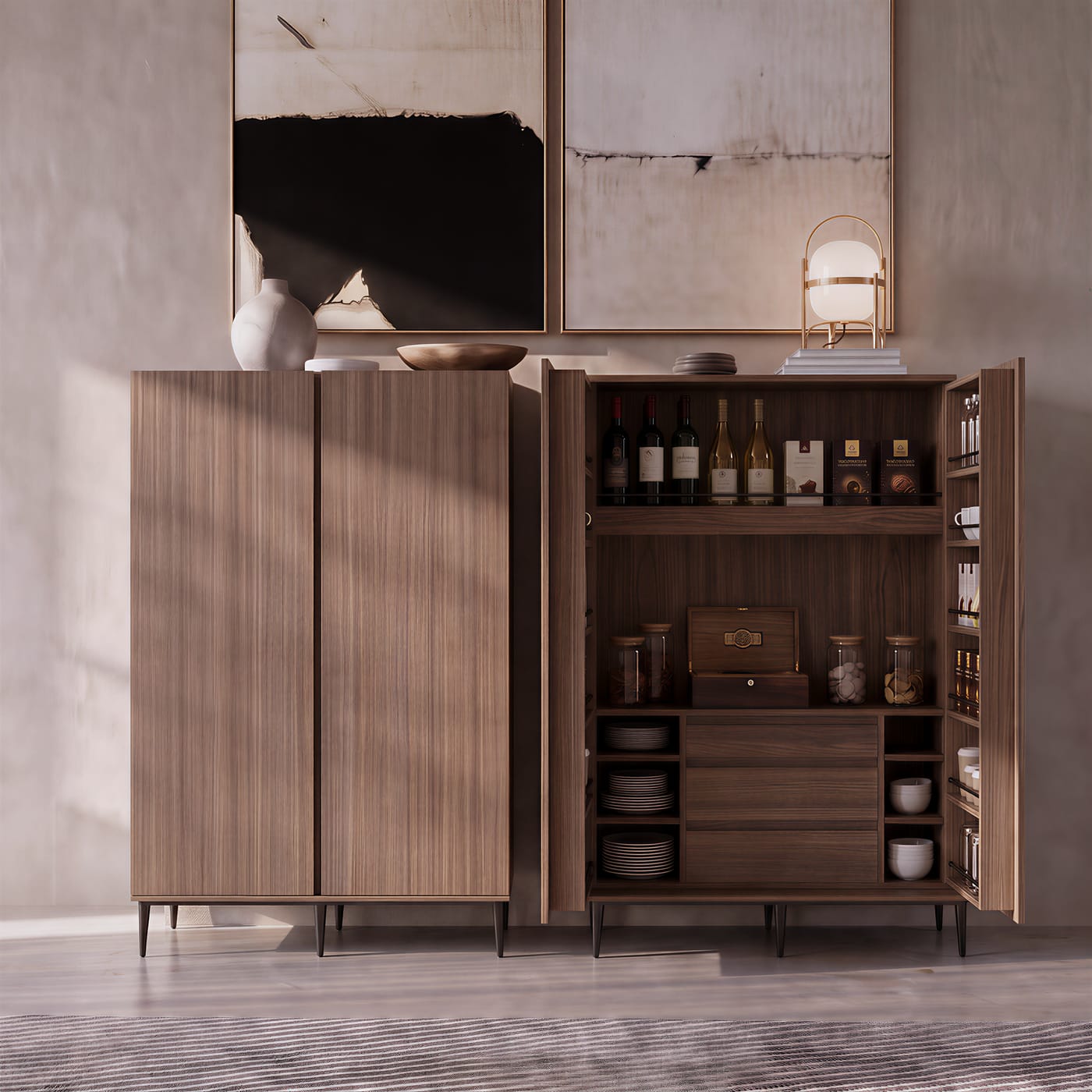

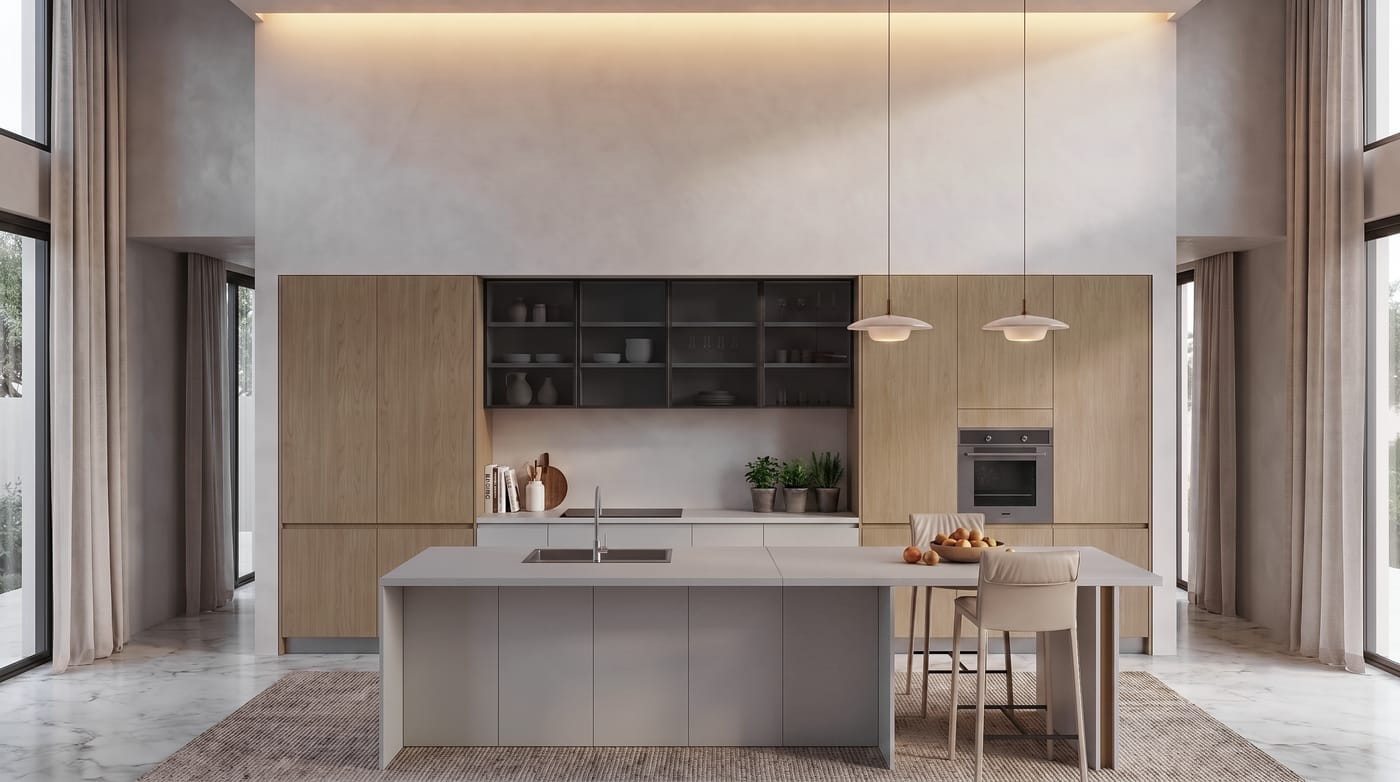

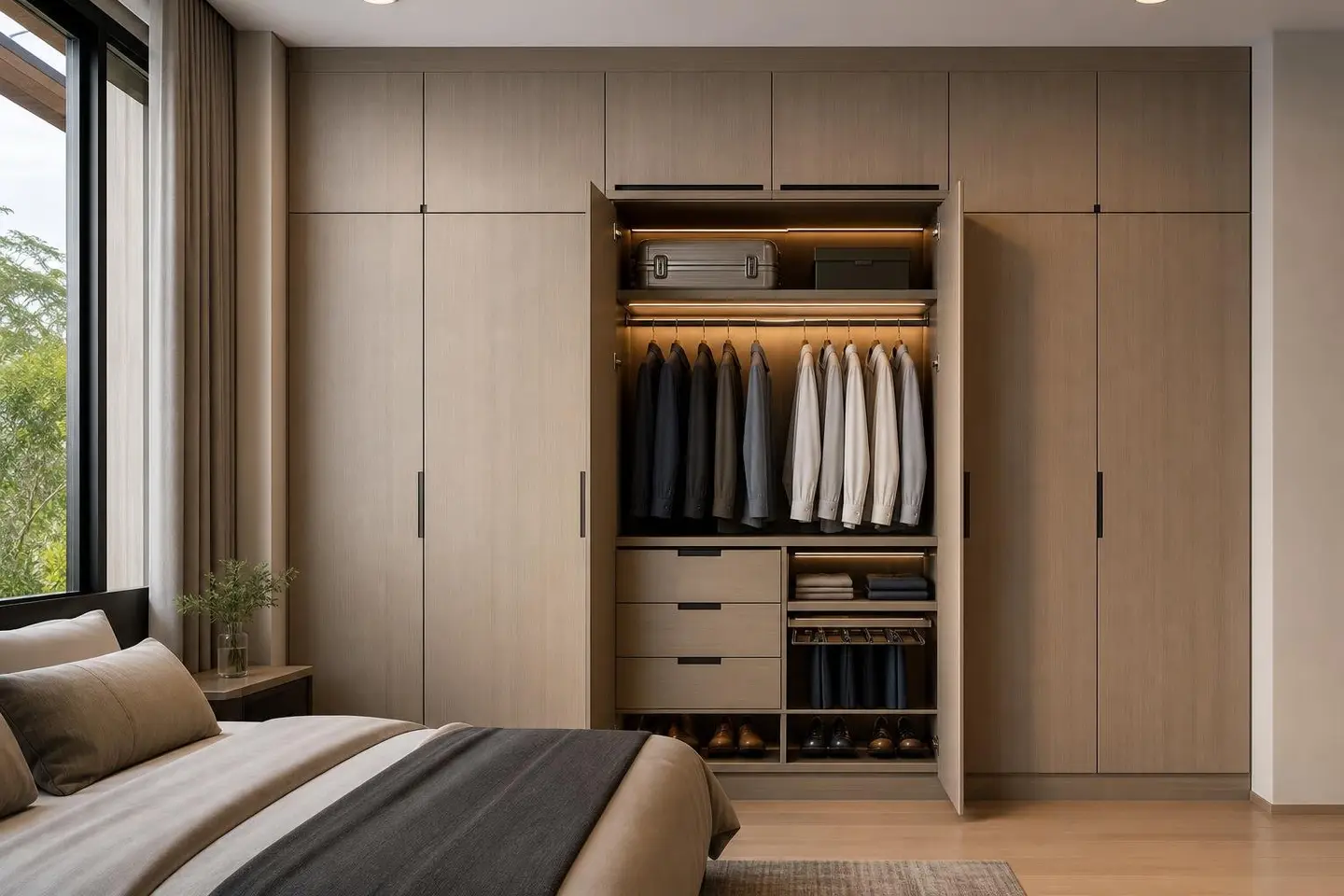

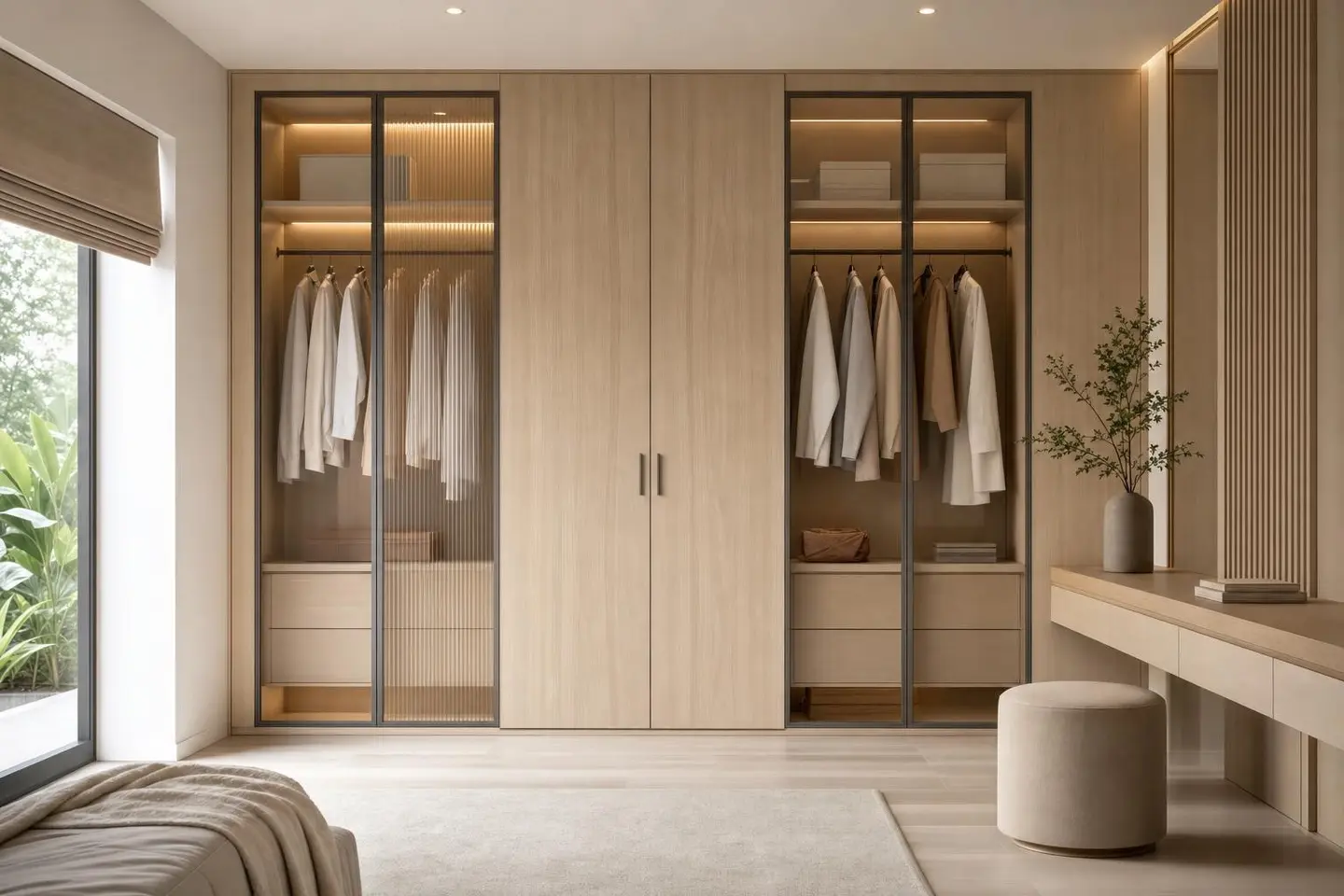

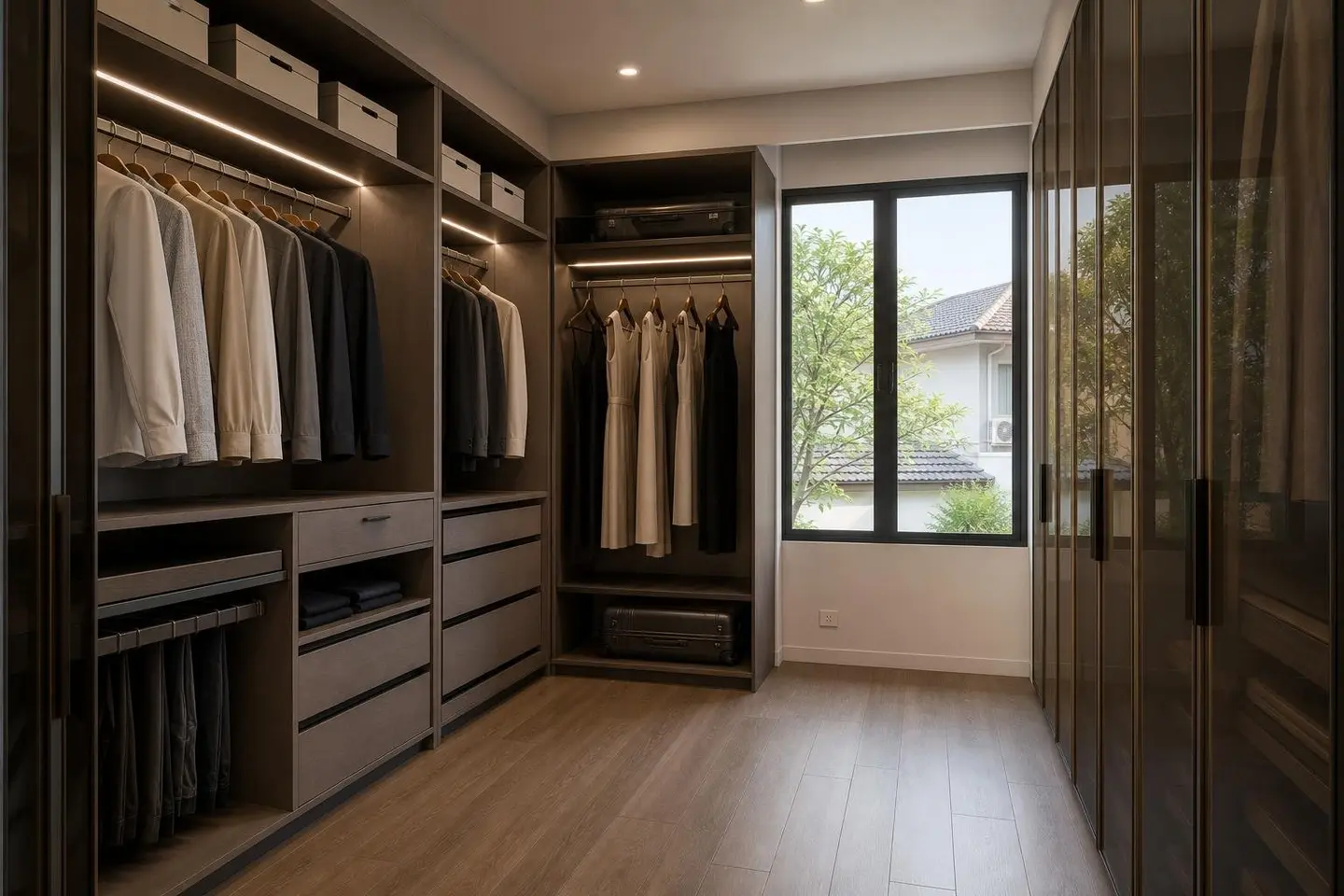

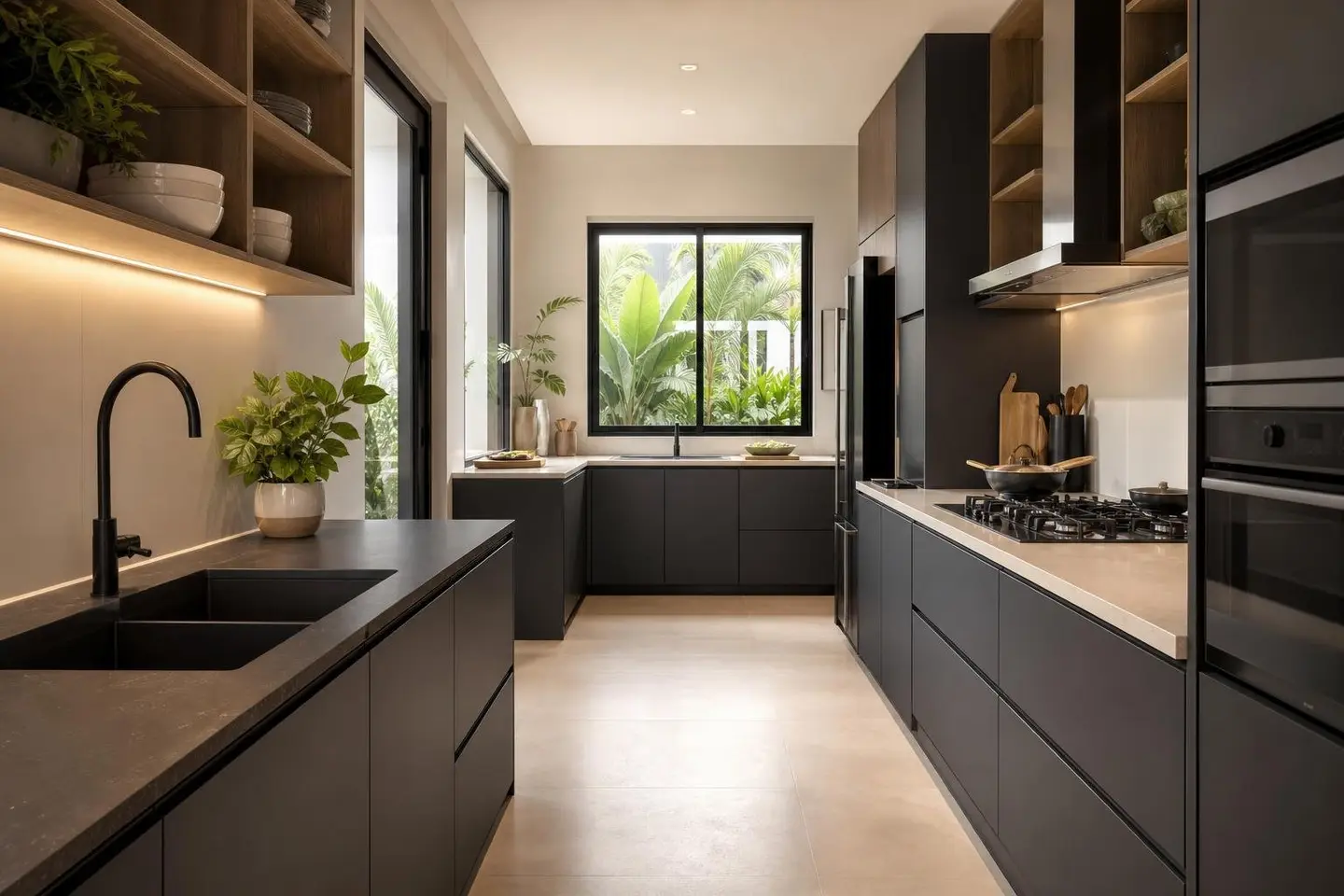

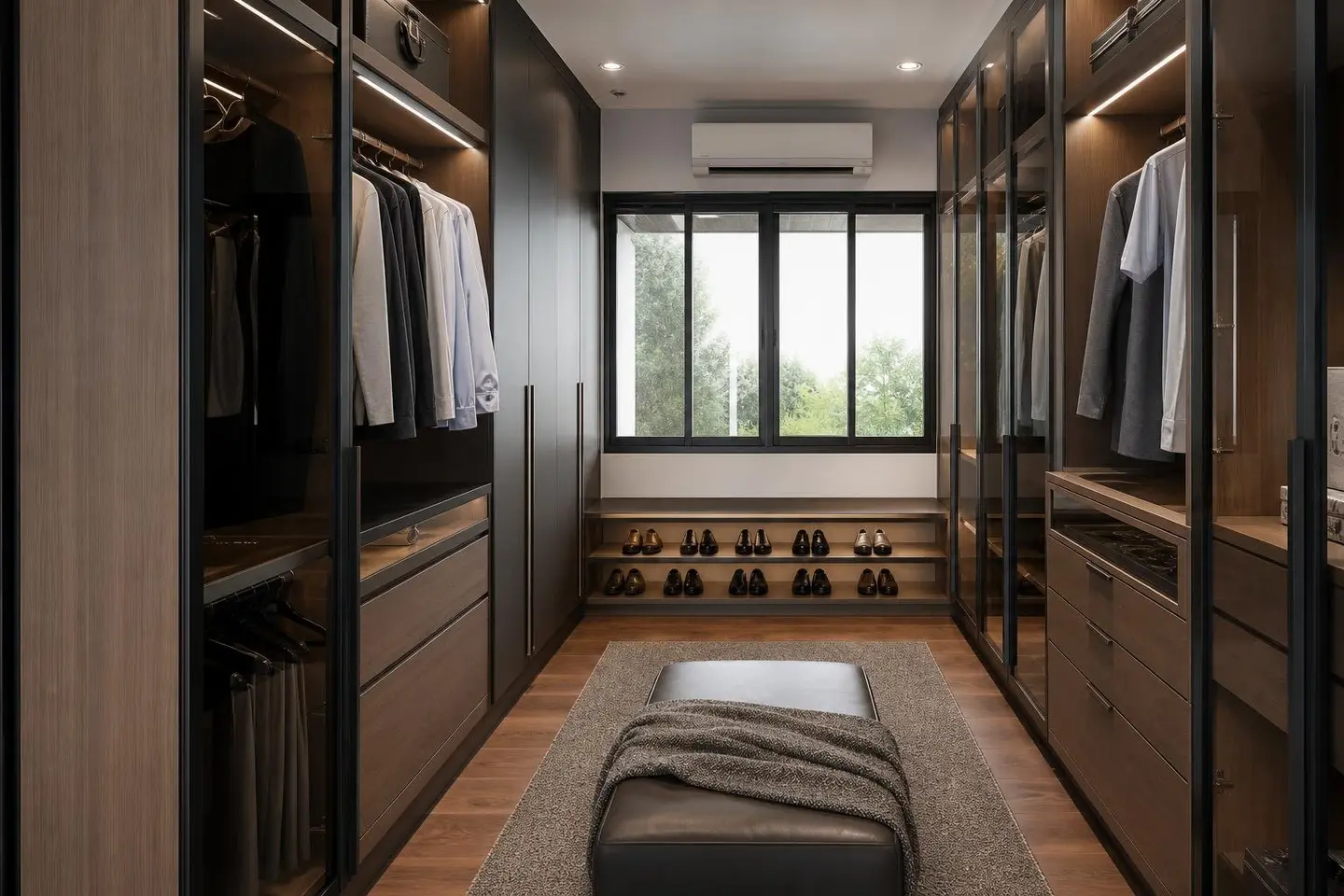

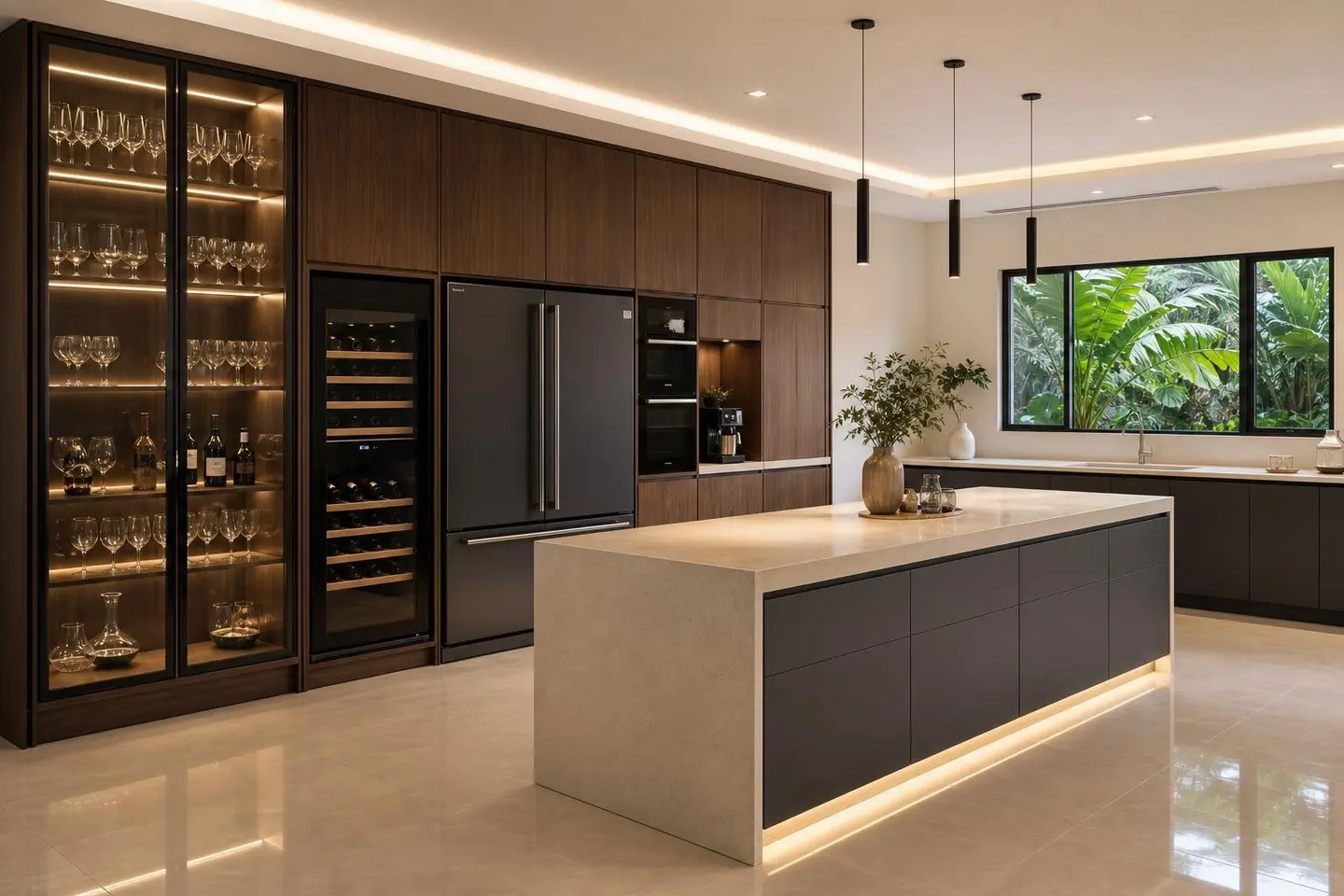

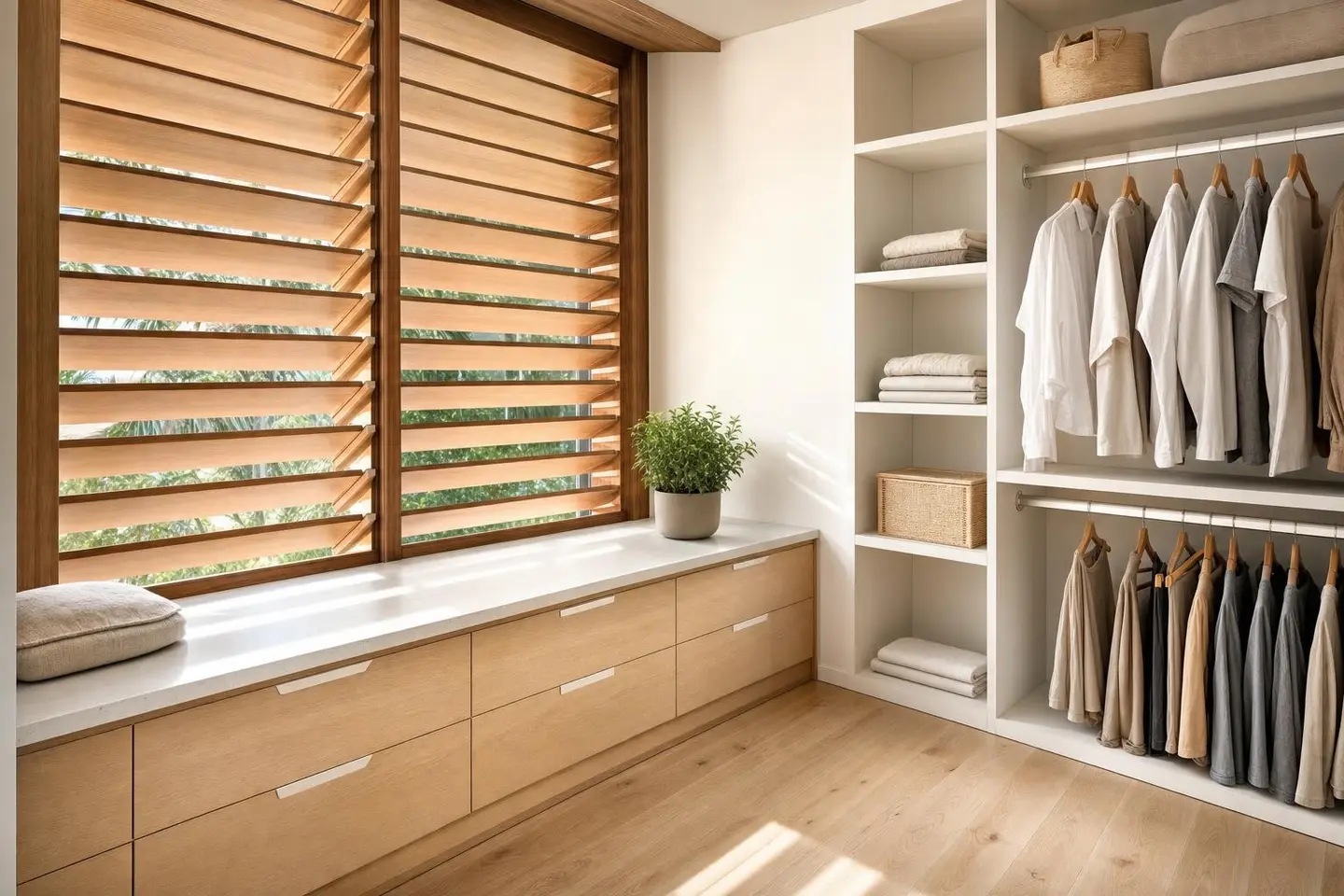

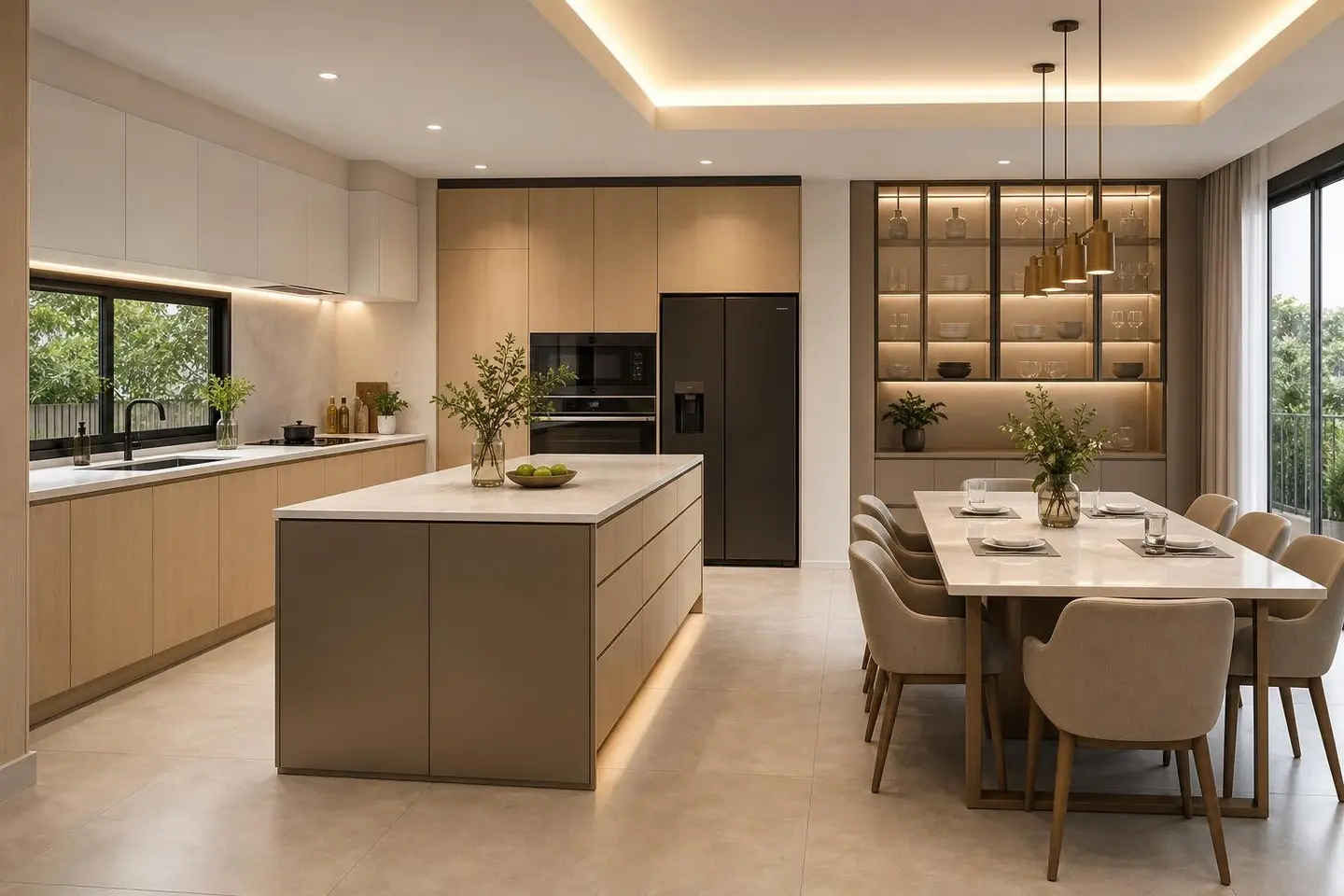

Approved design renders from the ELS Studio library — concept studies to show the style and layout, not photographs of a finished job. Like one? Send us the style, or build and price your own to match. ELS designs and specifies; ALUMAX supplies and installs.来自 ELS Studio 图库的已核准设计效果图——用以展示风格与布局的概念研究，并非成品实拍照片。喜欢某一个？把风格发给我们，或自行打造并估价以搭配。ELS 负责设计与规格，ALUMAX 负责供应与安装。Render reka bentuk yang diluluskan daripada pustaka ELS Studio — kajian konsep untuk menunjukkan gaya dan susun atur, bukan gambar kerja siap. Suka salah satu? Hantar gayanya kepada kami, atau bina dan hargakan sendiri untuk dipadankan. ELS mereka bentuk dan menetapkan spesifikasi; ALUMAX membekal dan memasang.
Bathroom vanity浴室柜Kabinet sinki bilik air like these, supplied & installed如这些，供应并安装seperti ini, dibekal & dipasang — From RM 1,100 / set
These are ELS Studio concept studies — the finished cabinetry is produced to your approved specification and will vary with your space, materials and finishes. The “from” figure is indicative and excludes SST.这些是 ELS Studio 的概念研究——成品橱柜按您确认的规格制作，会因您的空间、材料与饰面而有所不同。“起”价仅供参考，不含 SST。Ini ialah kajian konsep ELS Studio — kabinet siap dihasilkan mengikut spesifikasi yang anda luluskan dan akan berbeza mengikut ruang, bahan dan kemasan anda. Angka “dari” hanyalah anggaran dan tidak termasuk SST. Explore ELS Studio ↗探索 ELS Studio ↗Terokai ELS Studio ↗
Design concepts · ELS Studio设计概念 · ELS StudioKonsep reka bentuk · ELS Studio
See the look — then build it先看造型——再打造它Lihat rupanya — kemudian binalah
Approved design renders from the ELS Studio library — concept studies to show the style and layout, not photographs of a finished job. Like one? Send us the style, or build and price your own to match. ELS designs and specifies; ALUMAX supplies and installs.来自 ELS Studio 图库的已核准设计效果图——用以展示风格与布局的概念研究，并非成品实拍照片。喜欢某一个？把风格发给我们，或自行打造并估价以搭配。ELS 负责设计与规格，ALUMAX 负责供应与安装。Render reka bentuk yang diluluskan daripada pustaka ELS Studio — kajian konsep untuk menunjukkan gaya dan susun atur, bukan gambar kerja siap. Suka salah satu? Hantar gayanya kepada kami, atau bina dan hargakan sendiri untuk dipadankan. ELS mereka bentuk dan menetapkan spesifikasi; ALUMAX membekal dan memasang.
These are ELS Studio concept studies — the finished cabinetry is produced to your approved specification and will vary with your space, materials and finishes. The “from” figure is indicative and excludes SST.这些是 ELS Studio 的概念研究——成品橱柜按您确认的规格制作，会因您的空间、材料与饰面而有所不同。“起”价仅供参考，不含 SST。Ini ialah kajian konsep ELS Studio — kabinet siap dihasilkan mengikut spesifikasi yang anda luluskan dan akan berbeza mengikut ruang, bahan dan kemasan anda. Angka “dari” hanyalah anggaran dan tidak termasuk SST. Explore ELS Studio ↗探索 ELS Studio ↗Terokai ELS Studio ↗
Looking for FLYHOME modular cabinetry? The dry-zone range — kitchens, wardrobes, living and more — lives at its brand page.在找 FLYHOME 模块化橱柜？干区系列——厨房、衣柜、客厅等——都在其品牌页。Mencari kabinet modular FLYHOME? Rangkaian zon kering — dapur, almari, ruang tamu dan banyak lagi — berada di halaman jenamanya. FLYHOME at ALUMAXALUMAX 的 FLYHOMEFLYHOME di ALUMAX
See it in your home在您家中亲身查看Lihat ia di rumah anda
Bring your floor plan or room photos. We'll lay out the cabinets, match a finish and give you a clear price — no obligation.带上您的平面图或房间照片。我们会为您排布橱柜、搭配饰面并给出清晰的价格——无任何义务。Bawa pelan lantai atau foto bilik anda. Kami akan susun atur kabinet, padankan kemasan dan berikan anda harga yang jelas — tanpa sebarang obligasi.
Renders are for illustration — layouts, finishes and hardware are configured to your space and confirmed on a physical sample before production.效果图仅供示意——布局、饰面与五金会依您的空间配置,并在生产前以实物样品确认。Render adalah untuk ilustrasi — susun atur, kemasan dan perkakasan dikonfigurasikan mengikut ruang anda dan disahkan dengan sampel fizikal sebelum pengeluaran.
